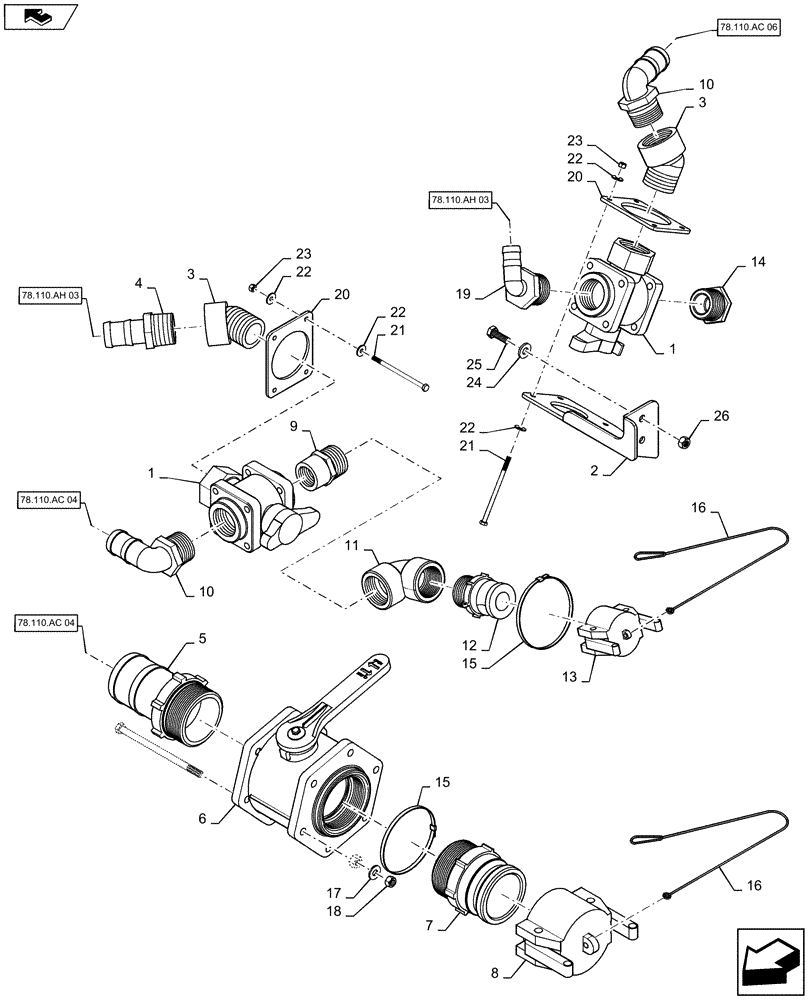

Запчасти Case IH 2240 (78.110.AC[02]) - PIPE, PRODUCT FILL STATION, 3" PLUMBING (78) - SPRAYING

1

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, Black, 1-1/2" NPT, Poly

2шт.

2

47479758

MOUNT

Valve

1шт.

3

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

2шт.

4

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

5

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

6

BN313506

VALVE,3" Standard Port Valve

Ball With Lever, 3" NPT, Poly

1шт.

7

BN2393306

COUPLING

3" NPT x 3" Cam, Poly

1шт.

8

BN2393384

CAP

3" Cam, Poly

1шт.

9

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1-1/2" NPT, Poly

1шт.

10

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

11

BN73713

ELBOW,90 Degree Elbow, 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, 90°, Poly

1шт.

12

BN25269

ADAPTER

1-1/2" Cam x 1-1/2" NPT, Poly

1шт.

13

BN22226

DUST CAP,1-1/2" Cap

1-1/2" Cam Lever, Poly

1шт.

14

BN73731

PLUG,1-1/2" Male NPT, Poly

1-1/2" NPT, Poly

1шт.

15

306132C1

CABLE TIE,14.5" L

2шт.

16

416624A1

ROPE

Lanyard, Nylon, 1/4" X 12"

2шт.

17

87310596

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

3/8", DOR

4шт.

18

87343665

NUT,Hex, 3/8" - 16, Gr 5, DOR

4шт.

19

BN323784

FITTING

1-1/2" NPT x 1"HB, 90 Degree

1шт.

20

87272712

FIXING PLATE

Valve

2шт.

21

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

8шт.

22

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6mm, DOR

16шт.

23

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

25

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

26

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
