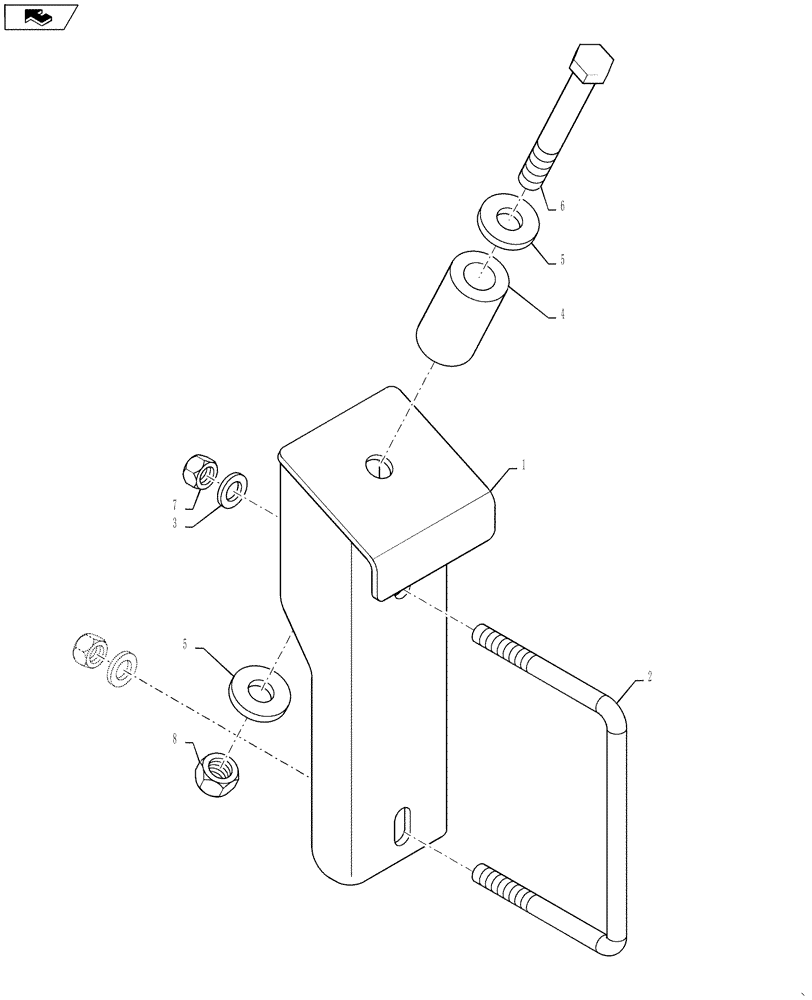

Запчасти Case IH 2240 (78.110.AA[05]) - PRODUCT TANK MOUNT ASSY (78) - SPRAYING

1

84288349

SUPPORT

Product Tank

1шт.

2

84264415

U-BOLT

M16 - 2, 166mm Deep, 254mm Wide

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

4

BN312850

SPRING

1" ID X 4" Long

1шт.

5

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 X 18 X 1.6 mm, CST, DOR

2шт.

6

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

M20 - 2.5 x 160mm, Class 10.9, DOR

1шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

1шт.
