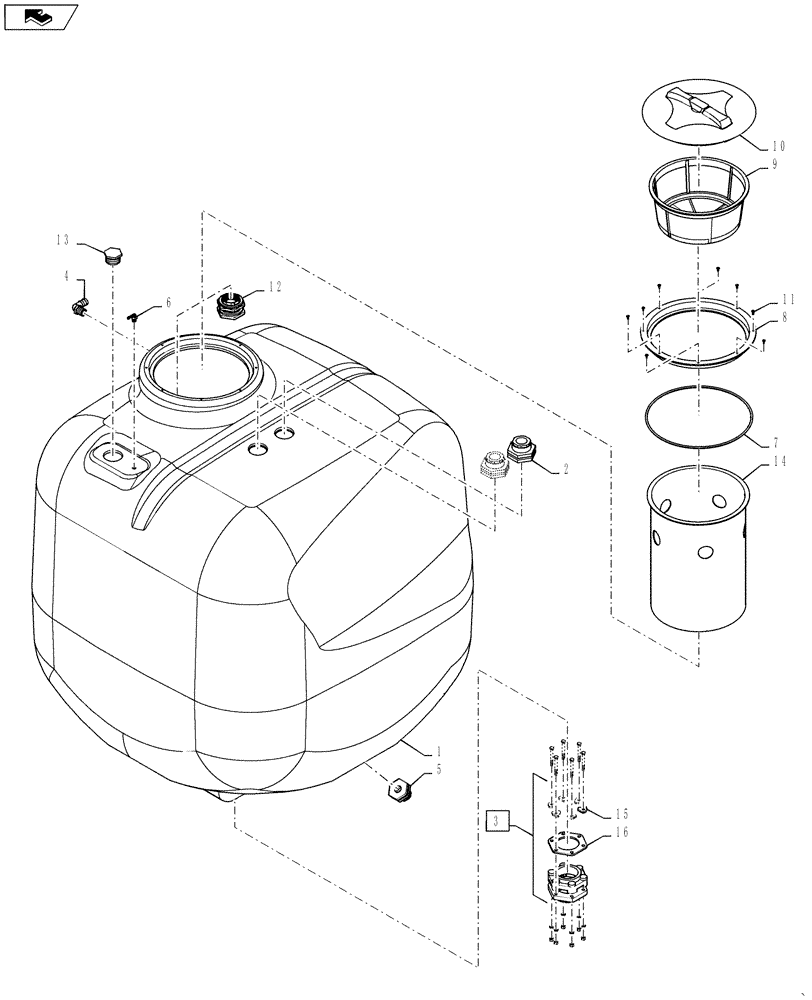

Запчасти Case IH 2240 (78.110.AA[04]) - PRODUCT TANK, 3" FILL (78) - SPRAYING

1

47511850

TANK

Product, 660 Gallon, 3" Fill

1шт.

2

BN73733

FITTING

Bulkhead, 1-1/2" FPT, Poly

2шт.

3

84142695

FLANGE,3" x 3" Threaded EPDM Flange

3" Fitting, Tank. Incl 15, 16

1шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

5

BN2403685

BULKHEAD

1" NPT, Poly

1шт.

6

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

7

87558657

SEAL,7.5mm Thk x 415mm ID

Seal Lid

1шт.

8

87558658

RING

Lid

1шт.

9

87558662

FILTER STRAINER

Product Tank Lid

1шт.

Not Used After SN:

1шт.

10

87558663

CAP

Product Tank Lid

1шт.

11

87635532

BOLT

M5 x 20

8шт.

12

87559557

FLANGE,2" Poly Bulkhead EPDM Tank Fitting

Bulkhead, 2" NPT, Poly

2шт.

13

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

14

84563021

DEFLECTOR

Product Tank

1шт.

Not Used After SN:

1шт.

15

84142766

GASKET

Bulkhead

6шт.

16

84142763

GASKET

Bulkhead

1шт.
