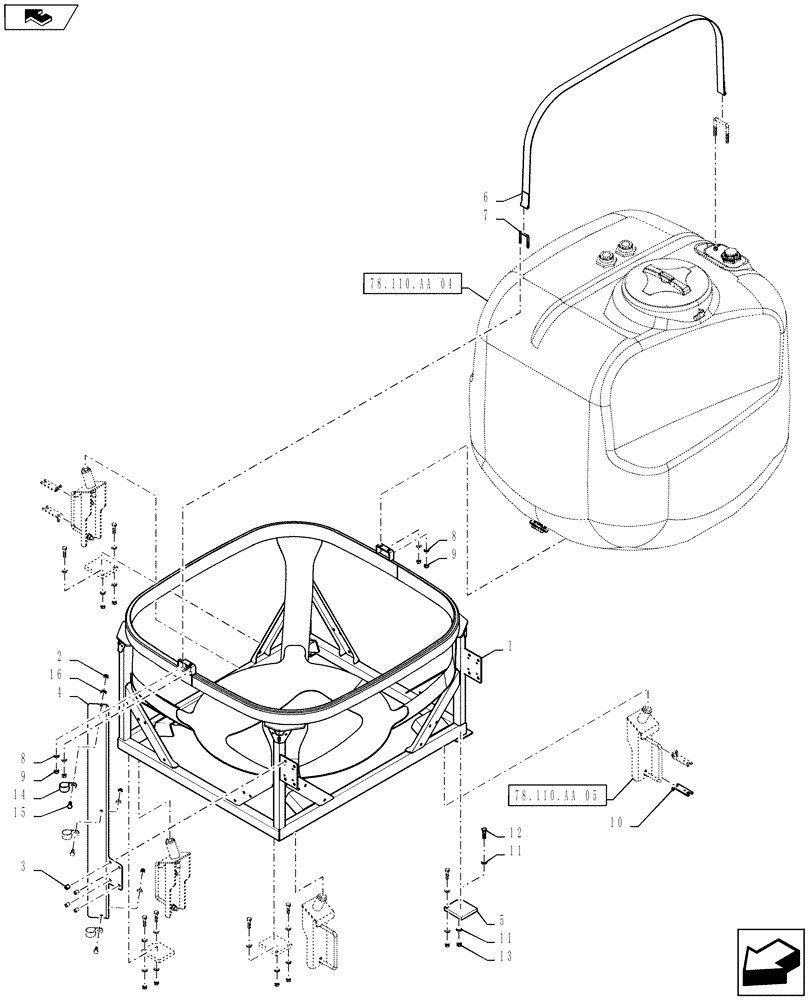

Запчасти Case IH 2240 (78.110.AA[03]) - PRODUCT TANK MOUNTING, 3" FILL (78) - SPRAYING

1

47480573

SUPPORT

Product Tank

1шт.

2

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

3

47392472

SPACER

Sight Gauge

4шт.

4

84288335

STEEL PLATE

Sight Gauge

1шт.

5

84288352

PAD

Product Tank Support

4шт.

6

84288354

SECURING STRAP

Product Tank

1шт.

7

BN319919

U-BOLT

2.06" ID x 2-3/4" x 3/8"

2шт.

8

87529232

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

0.344" x 0.688" x 0.089", HTS, DOR

4шт.

9

87343665

NUT,Hex, 3/8" - 16, Gr 5, DOR

Hex, 3/8" - 16, Grade 5, DOR

4шт.

10

84296062

SPACER

Frame Mount

4шт.

11

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

16шт.

12

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

13

87344209

NUT,M10 x 1.5, Cl 10, DOR

8шт.

14

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

3шт.
