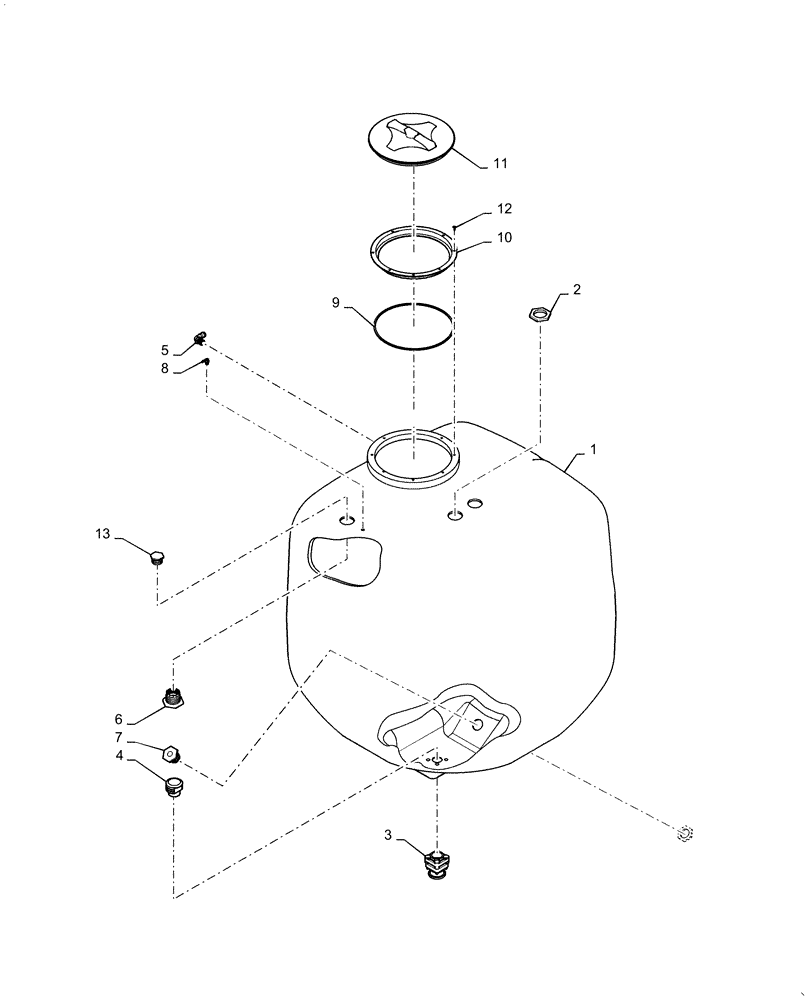

Запчасти Case IH 2240 (78.110.AA[02]) - PRODUCT TANK, 2" FILL (78) - SPRAYING

1

47511852

TANK

Product, 660 Gallon, 2" Fill, Incl 15

1шт.

2

BN73733

FITTING

Bulkhead, 1-1/2" NPT, Poly

2шт.

3

84288150

FLANGE,2" x 2" Full Port Threaded EPDM Flange

2" Fitting, Tank

1шт.

4

BN309799

COVER

Vent, Anti-Vortex, 2"

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

87559557

FLANGE,2" Poly Bulkhead EPDM Tank Fitting

Bulkhead, 2" NPT, Poly

2шт.

7

BN2403685

BULKHEAD

1" NPT, Poly

1шт.

8

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

9

87558657

SEAL,7.5mm Thk x 415mm ID

Seal Lid

1шт.

10

87558658

RING

Lid

1шт.

11

87558663

CAP

Product Tank Lid

1шт.

12

87635532

BOLT

M5 x 20

8шт.

13

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.
