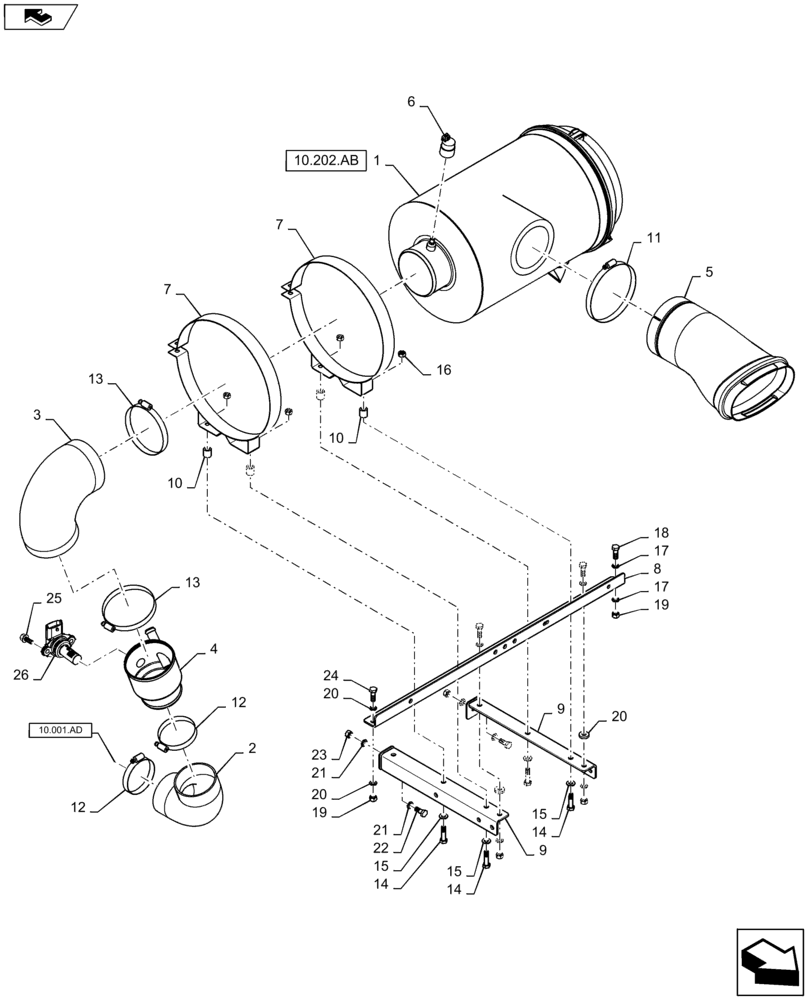

Запчасти Case IH 2240 (10.202.BD[01]) - AIR INTAKE (10) - ENGINE

1

344323A1

AIR CLEANER

Complete

1шт.

See Fig 10.202.AB For Service Parts

1шт.

2

47626924

ELBOW

4" x 90°

1шт.

3

84354254

ELBOW

110°

1шт.

4

84499108

AIR INTAKE TUBE

1шт.

5

84354258

AIR DUCT

Intake

1шт.

6

279492A1

RESTRICTION SWITCH

Air

1шт.

7

87042086

CLAMP,330mm ID

Band Clamp

2шт.

8

84573108

MOUNT

SCR

1шт.

9

47392495

MOUNT

Bracket

2шт.

10

47392472

SPACER

3/4" OD, Air Cleaner

4шт.

11

86639565

HOSE CLAMP,5.75" - 6.62", Worm Gear

5.75/6.625 SST HD Worm, With Liner

1шт.

12

L124635

HOSE CLAMP

2шт.

13

86637712

HOSE CLAMP,133mm - 156mm

2шт.

14

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

15

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

4шт.

16

87344209

NUT,M10 x 1.5, Cl 10, DOR

4шт.

17

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

18

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

20

87528984

WASHER,10.8mm ID x 25mm OD x 5mm Thk

2шт.

21

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 X 18 X 1.6 MM, CST, DOR

8шт.

22

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

23

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

24

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

25

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 x 12 mm, Full, ZND

2шт.

26

87482355

SENSOR

Air

1шт.
