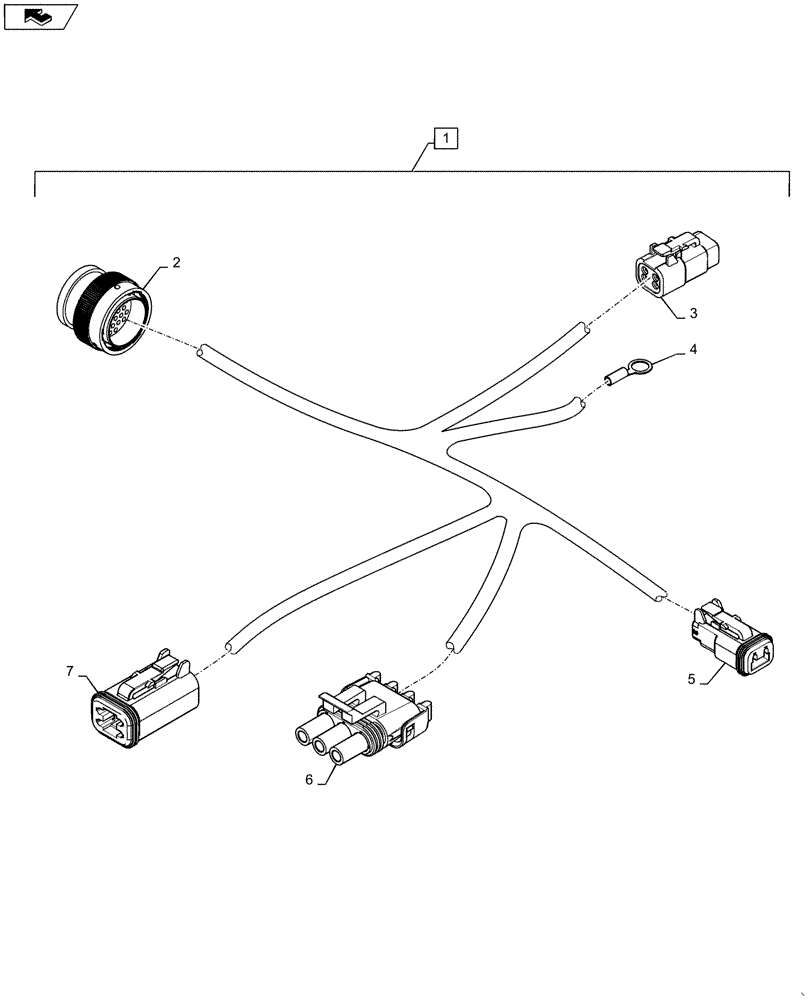

Запчасти Case IH 2240 (55.680.AA[02]) - AUTO GUIDANCE FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47566099

WIRE HARNESS

Complete Incl 2 Through 7

1шт.

2

87696949

ELEC CONNECTOR

31 Pin, XB-007M

1шт.

2

84068583

PLUG,12 - 16 Ga, White

19шт.

2

87695623

ELEC. TERMINAL PIN

Male Pin

10шт.

3

87696138

ELEC CONNECTOR

4 Way Receptical, Steering Sensor, X-717F

1шт.

3

87696149

ELEC CONNECTOR

Wedge Lock

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female Pin

4шт.

4

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

Eyelet, Ground, C749F

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Over Ride Valve, X-713F

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female Pin

2шт.

6

87655394

WIRE CONNECTOR

Over Ride Switch, X-715F

1шт.

6

87692880

CABLE TERMINAL

Female Pin

2шт.

6

87680701

SEAL

Green Cavity

2шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

Steering Valve, X-714F

1шт.

7

84074640

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female Pin

4шт.
