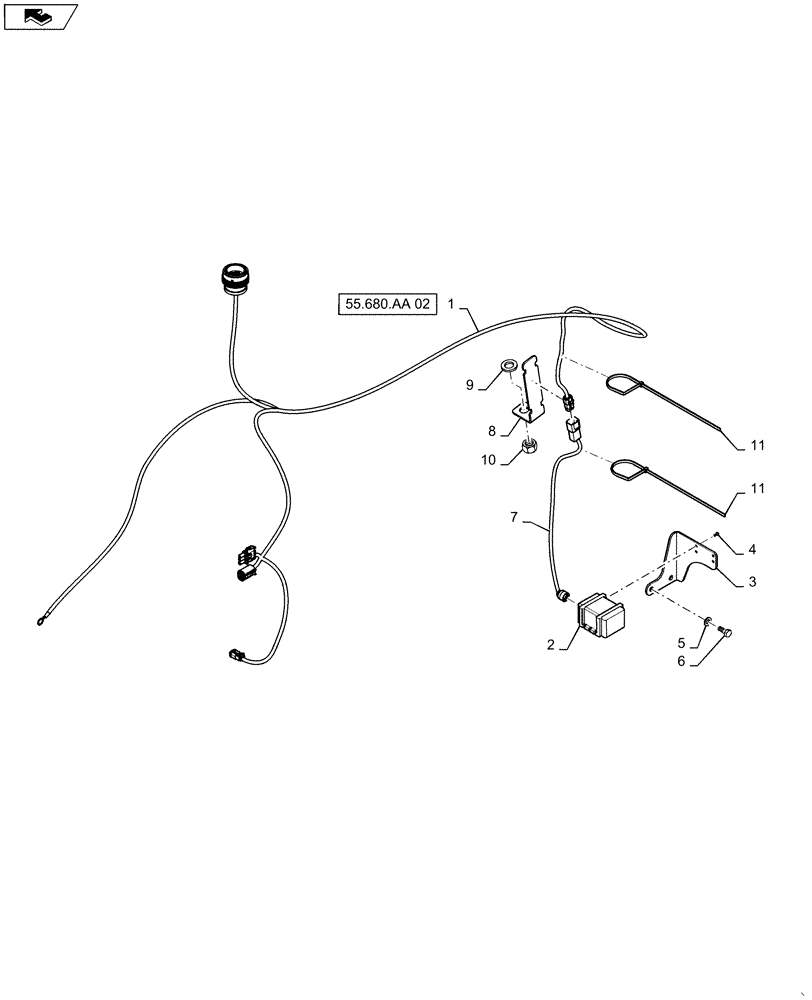

Запчасти Case IH 2240 (55.680.AA[01]) - AUTO GUIDANCE FRAME COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47566099

WIRE HARNESS

Autoguidance, Frame

1шт.

See 55.680.AA 02 For Service Parts

1шт.

2

87743199

MODULE

Autosence

1шт.

3

84427618

MOUNT

Module

1шт.

4

47685656

SCREW

6-32 x 3/8 PAN-HD

4шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

87743200

HARNESS

Jumper

1шт.

8

47554560

BRACKET

Cable

1шт.

9

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

10

87344007

LOCK NUT

DOR

1шт.

11

BN570007

STRAP

Zip Tie

11шт.

12

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

13

84485207

BASE

Tie, M12 Stud

1шт.

14

47853521

CABLE TIE

Dual Dividing

3шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

86500689

NUT,M10 x 1.5, Cl 10

1шт.

17

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

18

87695422

LOCK NUT

M12 10 DOR

1шт.

19

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.
