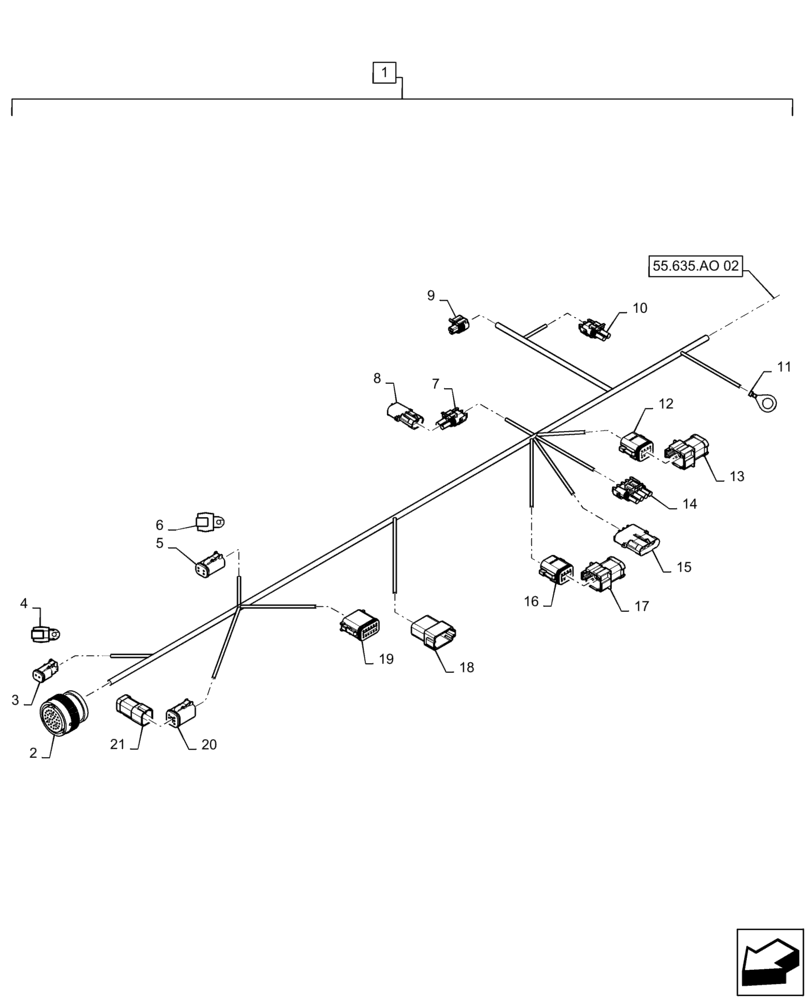

Запчасти Case IH 2240 (55.635.AO[01]) - PRODUCT CONTROL HARNESS, FRONT (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH 2240 - (55.635.AO[01]) - PRODUCT CONTROL HARNESS, FRONT (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5338498.png)
№
Артикул
Название
Примечание
Количество
1
47600669
WIRE HARNESS
Complete, Product Control, Incl 2 - 21
1шт.
2
380841A1
TERMINAL CONNECTOR
Female, 35 Cavity, XB-5F, Bulkhead, Product To Cab
1шт.
2
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Stamped, XB-5F, Bulkhead, Product To Cab
12шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, XB-5F, Bulkhead, Product To Cab
1шт.
2
84068583
PLUG,12 - 16 Ga, White
Sealing, XB-5F, Bulkhead, Product To Cab
1шт.
2
84807680
PLUG
Sealing, Red, XB-5F, Bulkhead, Product To Cab
13шт.
3
87695582
ELEC CONNECTOR,Female, 2 Pole
X-500F, Control Power
1шт.
3
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, X-500F, Control Power
2шт.
3
87695649
ELEC CONNECTOR,Locking, Green
Wedge, X-500F, Control Power
1шт.
4
84391159
WIRE CONNECTOR
Cap, X-500M, Control Power
1шт.
5
87694153
CONTACT HOUSING,Female, 4 Cavities
X-209F, CAN Buss Interface
1шт.
5
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, X-209F, CAN Buss Interface
4шт.
6
84391166
WIRE CONNECTOR,Male, 4 Pins
X-209M, CAN Buss Interface
1шт.
7
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
X-503M, Acc Power
1шт.
7
87692882
ELEC. TERMINAL PIN
Male, Tin, X-503M, Acc Power
2шт.
7
87680701
SEAL
Cable, Green, X-503M, Acc Power
2шт.
8
87692855
CONTACT HOUSING,Male, 2 Cavities
Cap, X-503F, Acc Power
1шт.
8
87686742
PLUG
Cavity, Green, X-503F, Acc Power Cap
2шт.
9
84078681
WIRE CONNECTOR,Female
3 Cavity, X-519F, Sparge PSI
1шт.
9
87688852
ELEC. TERMINAL PIN
Female, Tin, X-519F, Sparge PSI
1шт.
9
87693328
TERMINAL
Female, Tin, X-519F, Sparge PSI
2шт.
10
87692855
CONTACT HOUSING,Male, 2 Cavities
X-518F, Sparge Valve
1шт.
10
87692856
CABLE TERMINAL
Female, Tin, X-518F, Sparge Valve
1шт.
10
87680701
SEAL
Cable, Green, X-518F, Sparge Valve
2шт.
11
84301910
TERMINAL
M12, G1-PF, Chassis Ground
1шт.
12
87700325
ELEC CONNECTOR,Female, 8 Cavities
Female, 8 Cavity, X-555F, Splice Pack
1шт.
12
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, X-555F, Splice Pack
4шт.
12
84068583
PLUG,12 - 16 Ga, White
Sealing, X-555F, Splice Pack
4шт.
12
84806312
LOCKING TAB,Wedge Lock
Wedge Lock, Green, X-555F, Splice Pack
1шт.
13
87587627
CONTACT HOUSING
Buss Bar, 8 Cavity, X-555M, Splice Pack
1шт.
14
87692817
ELEC CONNECTOR
4 Cavity, X-517F, Remote / Aim
1шт.
14
87692856
CABLE TERMINAL
Female, Tin, X-517F, Remote / Aim
4шт.
14
87680701
SEAL
Cable, Green, X-517F, Remote / Aim
4шт.
15
245487C1
ELEC CONNECTOR,Male, 4 Pin
X-520M, Remote / Aim Out
1шт.
15
87692880
CABLE TERMINAL
Male, Tin, X-520M, Remote / Aim Out
4шт.
15
87680701
SEAL
Cable, Green, X-520M, Remote / Aim Out
4шт.
15
87686742
PLUG
Cavity, Green, X-520M, Remote / Aim Out
2шт.
16
87700325
ELEC CONNECTOR,Female, 8 Cavities
Female, 8 Cavity, X-551F, Splice Pack
1шт.
16
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, X-551F, Splice Pack
6шт.
16
225321C1
WEDGE
Wedge Lock, Green, X-551F, Splice Pack
1шт.
17
87270259
ELEC CONNECTOR
Buss Bar, 8 Cavity, X-551M, Splice Pack
1шт.
18
87695724
ELEC CONNECTOR,Male, 12 Pole
X-523M, Boom Interface
1шт.
18
84068583
PLUG,12 - 16 Ga, White
Sealing, X-523M, Boom Interface
1шт.
18
87698541
LOCKING TAB,Wedge Lock, 12-Pin
Wedge Lock, Green, X-523M, Boom Interface
1шт.
19
87695592
CONTACT HOUSING,Female, 12 Pole
X-523F, Boom Interface
1шт.
19
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
X-523F, Boom Interface
9шт.
19
84068583
PLUG,12 - 16 Ga, White
Sealing, X-523F, Boom Interface
3шт.
19
87695651
LOCKING TAB,Wedge Lock
Lock, X-523F, Boom Interface
1шт.
20
87694109
ELEC CONNECTOR
Female, 6 Cavity, X-757F, Splice Pack
1шт.
20
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Stamped, X-757F, Splice Pack
6шт.
21
87587623
CONTACT HOUSING
Cap, Buss Bar, X-757M, Splice Pack
1шт.
Выбрано товаров: 53
