Запчасти Case IH 2240 (55.635.AM[03]) - AIM COMMAND, 80/90, 5 SECTION, INNER HARNESS, 15 NOZZLES (55) - ELECTRICAL SYSTEMS

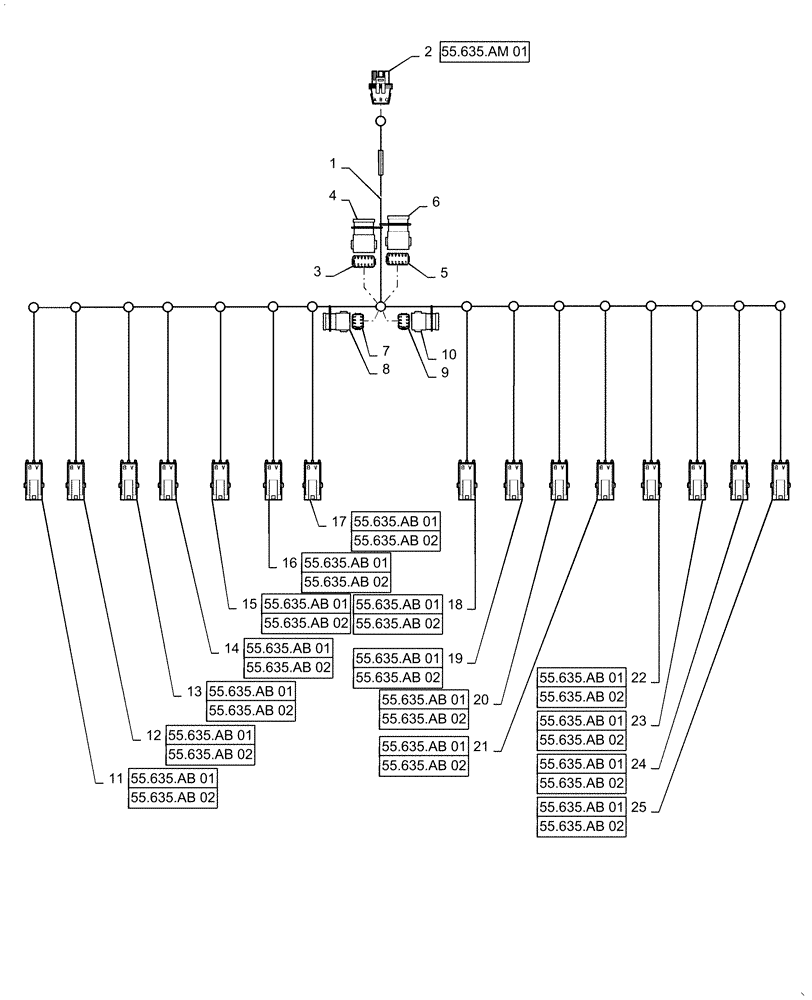

Схема запчастей Case IH 2240 - (55.635.AM[03]) - AIM COMMAND, 80/90, 5 SECTION, INNER HARNESS, 15 NOZZLES (55) - ELECTRICAL SYSTEMS
55.635.ab 01
1
55.635.ab 02
55.635.ab 02
20
11
8
22
16
21
25
7
6
5
55.635.ab 01
4
55.635.ab 01
55.635.ab 01
17
9
55.635.ab 01
55.635.ab 01
55.635.ab 01
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 02
55.635.ab 01
18
55.635.ab 01
55.635.ab 02
55.635.ab 01
23
55.635.ab 02
10
55.635.ab 02
55.635.ab 01
55.635.ab 01
55.635.am 01
3
14
55.635.ab 01
13
55.635.ab 02
24
55.635.ab 01
12
15
55.635.ab 01
2
55.635.ab 02
55.635.ab 02
55.635.ab 02
19
55.635.ab 02

Артикул

Название

Примечание

Количество

1

87586925

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Inner Section, 15 Nozzle

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P16

1шт.

2

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P16

3шт.

2

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P16

1шт.

3

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P100

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P100

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P100

12шт.

4

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J100

1шт.

5

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P101

1шт.

5

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P101

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P101

12шт.

6

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J101

1шт.

7

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice Pack, P102

1шт.

7

84806312

LOCKING TAB,Wedge Lock

Wedge, Splice Pack, P102

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P102

8шт.

8

87270259

ELEC CONNECTOR

8 Way Splice Pack, J102

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice Pack, P103

1шт.

9

84806312

LOCKING TAB,Wedge Lock

Wedge, Splice Pack, P103

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P103

8шт.

10

87270259

ELEC CONNECTOR

8 Way Splice Pack, J103

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J01

1шт.

11

225119C1

TERMINAL

Nozzle Solenoid Connector, J01

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J01

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J02

1шт.

12

225119C1

TERMINAL

Nozzle Solenoid Connector, J02

2шт.

12

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J02

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J03

1шт.

13

225119C1

TERMINAL

Nozzle Solenoid Connector, J03

2шт.

13

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J03

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J04

1шт.

14

225119C1

TERMINAL

Nozzle Solenoid Connector, J04

2шт.

14

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J04

2шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J05

1шт.

15

225119C1

TERMINAL

Nozzle Solenoid Connector, J05

2шт.

15

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J05

2шт.

16

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J06

1шт.

16

225119C1

TERMINAL

Nozzle Solenoid Connector, J06

2шт.

16

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J06

2шт.

17

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J07

1шт.

17

225119C1

TERMINAL

Nozzle Solenoid Connector, J07

2шт.

17

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J07

2шт.

18

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J08

1шт.

18

225119C1

TERMINAL

Nozzle Solenoid Connector, J08

2шт.

18

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J08

2шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J09

1шт.

19

225119C1

TERMINAL

Nozzle Solenoid Connector, J09

2шт.

19

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J09

2шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J10

1шт.

20

225119C1

TERMINAL

Nozzle Solenoid Connector, J10

2шт.

20

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J10

2шт.

21

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J11

1шт.

21

225119C1

TERMINAL

Nozzle Solenoid Connector, J11

2шт.

21

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J11

2шт.

22

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J12

1шт.

22

225119C1

TERMINAL

Nozzle Solenoid Connector, J12

2шт.

22

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J12

2шт.

23

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J13

1шт.

23

225119C1

TERMINAL

Nozzle Solenoid Connector, J13

2шт.

23

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J13

2шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J14

1шт.

24

225119C1

TERMINAL

Nozzle Solenoid Connector, J14

2шт.

24

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J14

2шт.

25

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J15

1шт.

25

225119C1

TERMINAL

Nozzle Solenoid Connector, J15

2шт.

25

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J15

2шт.

Выбрано товаров: 65
