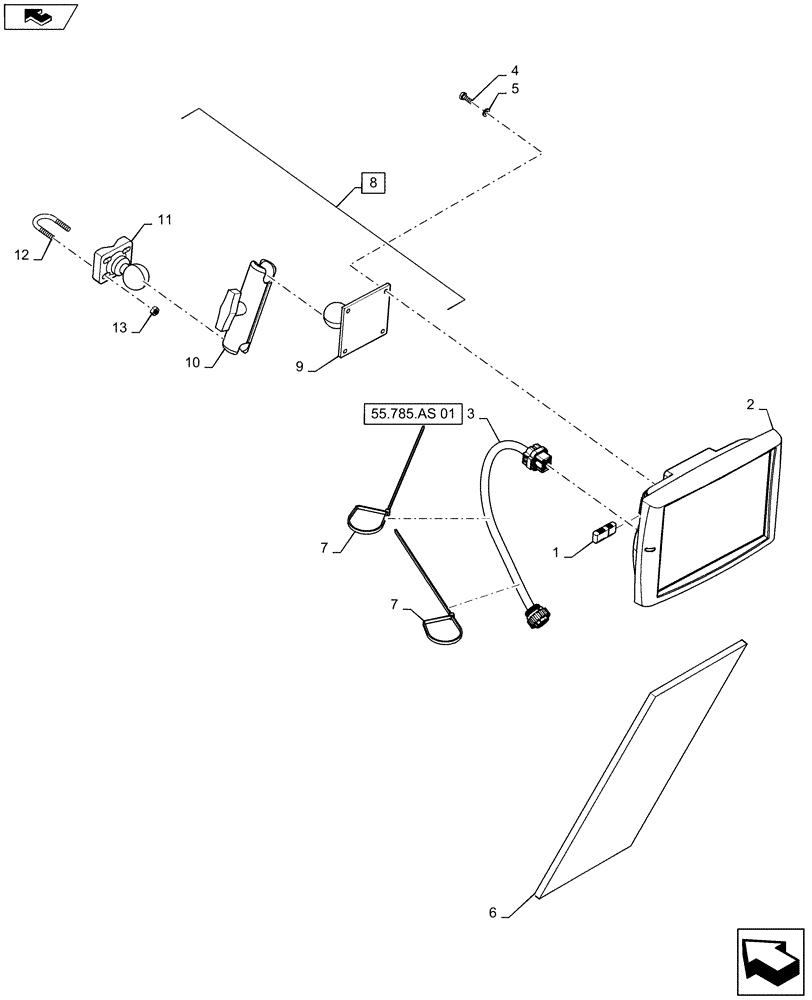

Запчасти Case IH 2240 (55.635.AE[01]) - PRO 700 DISPLAY (55) - ELECTRICAL SYSTEMS

1

84398840

MEMORY CARD,4GB

4GB USB

1шт.

2

47514045

DISPLAY

Pro 700

1шт.

3

84189330

WIRE HARNESS

Pro 700 To Cab, See 55.785.AS[01] For Service Parts

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

47396175

OPERATOR MANUAL

Pro 700

1шт.

7

BN570007

STRAP

Black, Zip Tie

1шт.

8

87386396

MOUNT

Mount, Incl 9, 10, 11, 12, 13

1шт.

9

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

10

87284257

ARM

Double Socket, 1.5" Ball

1шт.

11

87284259

PLATE

Base, Double U Bolt

1шт.

12

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
