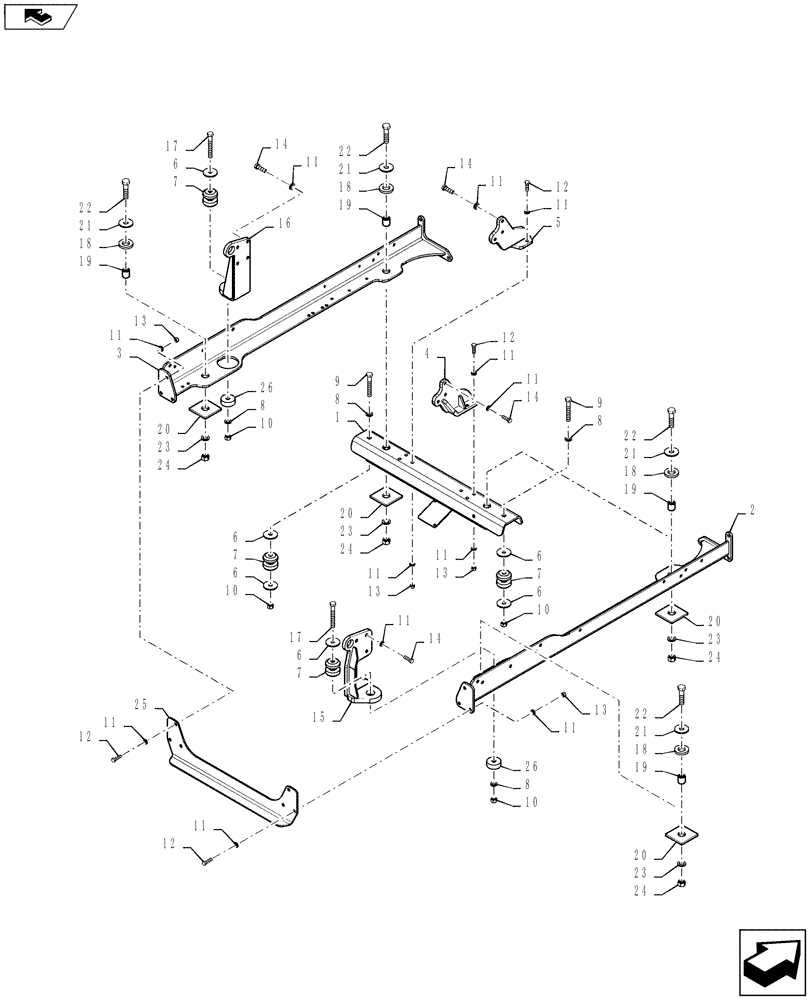

Запчасти Case IH 2240 (10.001.AK[01]) - ENGINE MOUNT (10) - ENGINE

1

84516265

MOUNT

Product Pump

1шт.

2

84399251

FRAME

RH Sub Frame

1шт.

3

84399248

FRAME

LH Sub Frame

1шт.

4

84518199

MOUNT

Engine, RH, Machined

1шт.

5

84518200

MOUNT

Engine, LH, Machined

1шт.

6

84218887

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

8шт.

7

361811A1

ISOLATOR

Engine Mount

4шт.

8

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

9

86980449

BOLT,Hex, M16 - 2 x 110mm, Cl 8.8, DOR

2шт.

10

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

38шт.

12

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

13

87695422

LOCK NUT

Hex, M12 - 1.75, Class 10.9, DOR

12шт.

14

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

14шт.

15

84559897

ENGINE MOUNT

Rear, RH

1шт.

16

84559900

MOUNT

Engine, Rear, LH

1шт.

17

86980450

BOLT,Hex, M16 - 2 x 120mm, Cl 8.8, DOR

2шт.

18

87270628

ISOLATOR

Rubber

4шт.

19

84270513

BUSHING,22.2mm ID x 31.8mm OD x 37mm L

Engine Mount

4шт.

20

86986942

ISOLATOR

Rubber

4шт.

21

BN322925

WASHER

M20, Rebound

4шт.

22

87341550

BOLT,Hex, M20 - 2.5 x 80mm, Class 8.8, DOR

4шт.

23

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

2шт.

24

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

4шт.

25

47607663

PLATE

Rear Support

1шт.

26

84525879

SPACER

Rear Engine Mount

2шт.
