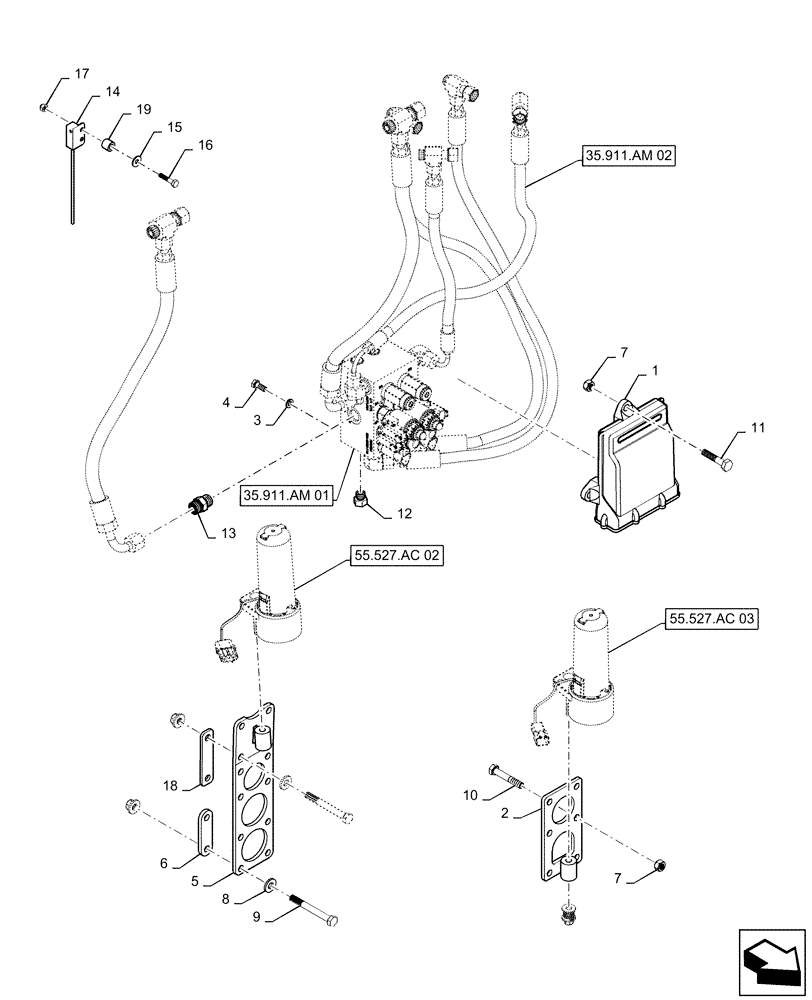

Запчасти Case IH 2240 (55.527.AC[01]) - AUTOBOOM, 24M -27M BOOM (55) - ELECTRICAL SYSTEMS

1

87717349

MODULE

Autoboom Node

1шт.

1

87717349R

REMAN-MODULE

Autoboom Node

1шт.

1

87717349C

CORE-MODULE

Return Number

1шт.

2

84255690

BRACKET

Sensor

1шт.

3

80681

LOCK WASHER,5/16"

4шт.

4

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

5

47593329

MOUNT

Sensor,Tall

2шт.

6

BN308039

PLATE

Spacer

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

21шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

32шт.

9

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

16шт.

10

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

11

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

12

BN446048

PLUG

9/16 - 18

2шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

14

BN315498

SWITCH

Position Sensor With Diode

2шт.

15

BN50138

WASHER,1/4", SS

4шт.

16

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4 - 20 x 1-1/4, SS

4шт.

17

BN55359

LOCK NUT,1/4"-20, SS

4шт.

18

84326080

PLATE

Sensor Mount

4шт.

19

47441518

TUBE

Sensor Mount

4шт.
