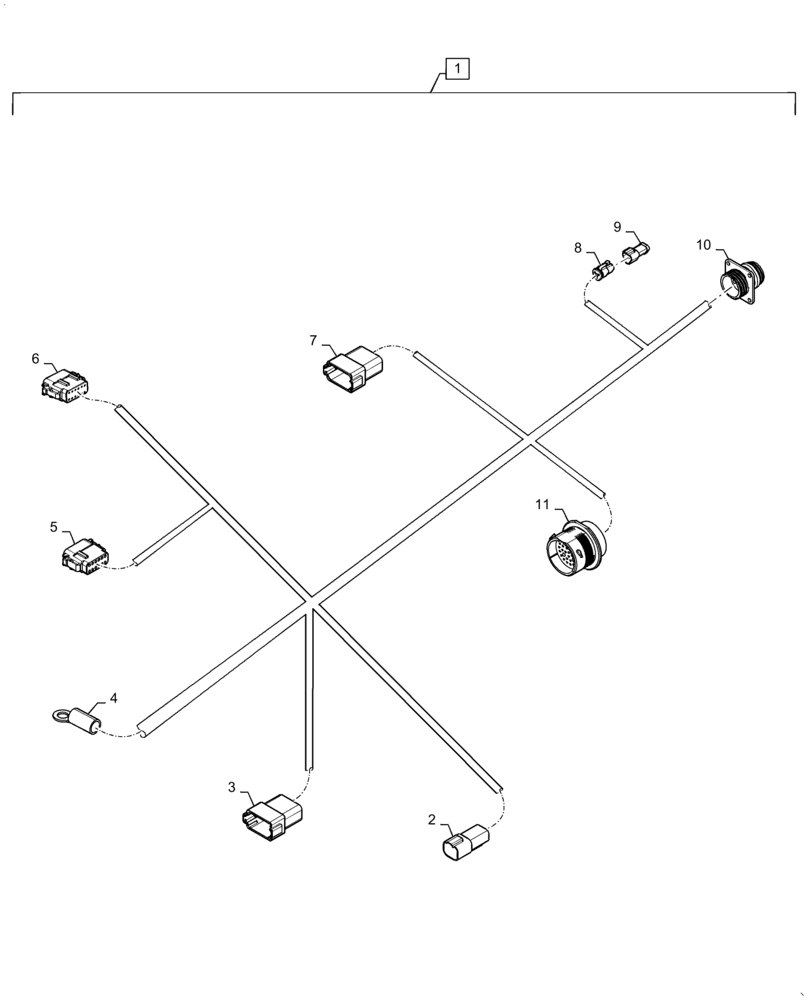

Запчасти Case IH 2240 (55.521.AL[04]) - PRODUCT CONTROL, CAB INTERFACE, HARNESS (55) - ELECTRICAL SYSTEMS

1

84541768

WIRE HARNESS

Product Control, Cab, Complete, Incl 2 - 11

1шт.

2

87694102

ELEC CONNECTOR

Male, 4 Cavity, X-038M, Hyd / Prod Interface

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, X-038M, Hyd / Prod Interface

4шт.

2

87694145

ELEC CONNECTOR

Wedge Lock, X-038M, Hyd / Prod Interface

1шт.

3

225401C1

CONNECTOR, ELEC

Male, 12 Cavity, X-040M, Hyd / Prod Interface Keying C

1шт.

3

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, X-040M, Hyd / Prod Interface Keying C

11шт.

3

84068583

PLUG,12 - 16 Ga, White

Sealing, X-040M, Hyd / Prod Interface Keying C

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, X-040M, Hyd / Prod Interface Keying C

1шт.

4

87486319

TERMINAL

Ring Terminal, M10, CG3, Clean Ground

1шт.

5

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

X-047F, Speed Node, Keying B

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, X-047F, Speed Node, Keying B

4шт.

5

87705198

WEDGE

Lock, X-047F, Speed Node, Keying B

1шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

X-051F, Speed Node, Keying A

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, X-051F, Speed Node, Keying A

11шт.

6

87705198

WEDGE

Lock, X-051F, Speed Node, Keying A

1шт.

6

84807680

PLUG

Sealing, Red, X-051F, Speed Node, Keying A

1шт.

7

225464C1

CONNECTOR, ELEC

Male, 12 Cavity, X-054M, Cab / Prod Interface

1шт.

7

87695623

ELEC. TERMINAL PIN

Stamped, X-054M, Cab / Prod Interface

12шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

X-725F Can Terminator

1шт.

8

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Solid, X-725F Can Terminator

2шт.

8

84147090

LOCKING TAB,Wedge Lock

Lock, X-725F Can Terminator

1шт.

9

84058092

CONTACT HOUSING,120 Ohm Resistor

X-725M Can Terminator

1шт.

10

87689501

ELEC CONNECTOR

Male, 16 Cavity, XB-011F, Control Interface

1шт.

10

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, XB-011F, Control Interface

4шт.

10

225107C1

TERMINAL CONNECTOR,Male, 0.8 - 1 mm2

Gold, XB-011F, Control Interface

4шт.

10

225141C1

MULTIPOLE CONNECTOR

# 17 Cable Clamp, XB-011F, Control Interface

1шт.

11

87694102

ELEC CONNECTOR

Male, 4 Cavity, X-038M, Hyd / Prod Interface

1шт.

11

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, X-038M, Hyd / Prod Interface

4шт.

11

87694145

ELEC CONNECTOR

Wedge Lock, X-038M, Hyd / Prod Interface

1шт.
