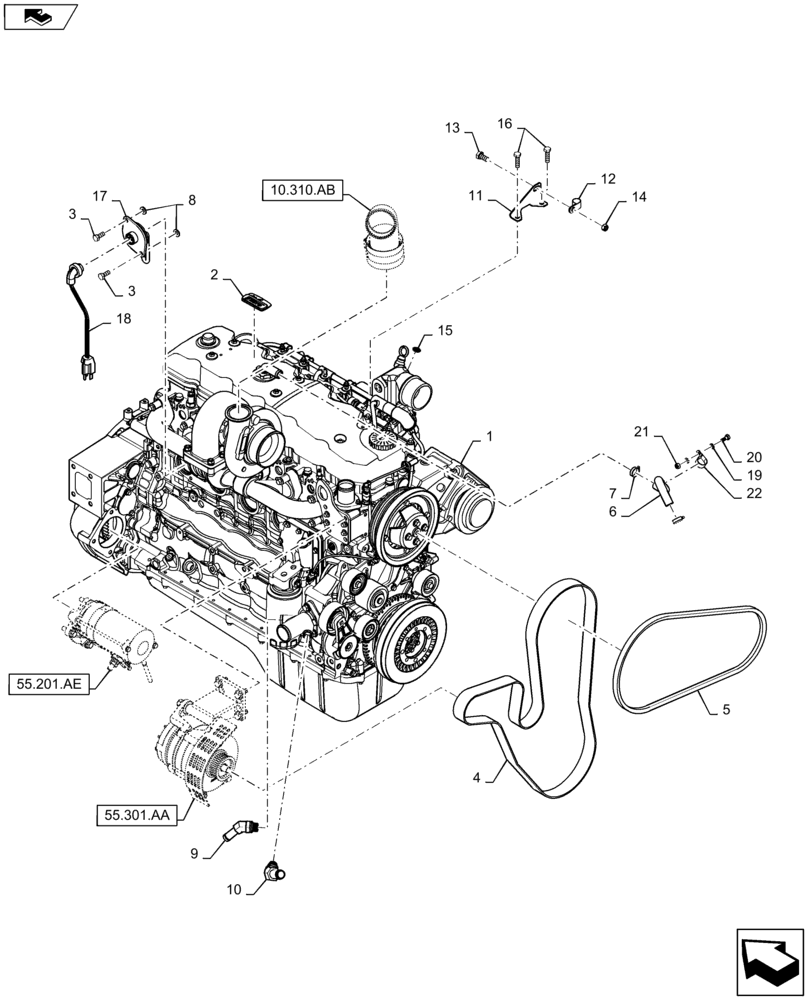

Запчасти Case IH 2240 (10.001.AD[01]) - ENGINE ASSY (10) - ENGINE

1

47408171

ENGINE

Service, Tier 4A, 123KW

1шт.

2

84373430

EMBLEM

Case IH

1шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

87519458

V-BELT

8-Rib, 1930 mm

1шт.

5

47505224

V-BELT

A/C Compressor

1шт.

6

47547513

INTAKE AIR HOSE

0.875" ID x 17.7" Long

1шт.

7

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

87626014

FITTING

5/8 Hose Barb x M18 Thread

1шт.

10

87626015

FITTING

3/4 Hose Barb x M18 Thread

1шт.

11

87579956

BRACKET

Engine Oil Dipstick

1шт.

12

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

13

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Hex, M10 - 1.5 x 20mm, Class 8.8, DOR

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

17

8602005

HEATER,750W, 120V

Block, 750W, 120 V

1шт.

18

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater, 120 Volt, 72" Long

1шт.

19

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 x 18 x 1.6mm, DOR

2шт.

20

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

22

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

1шт.
