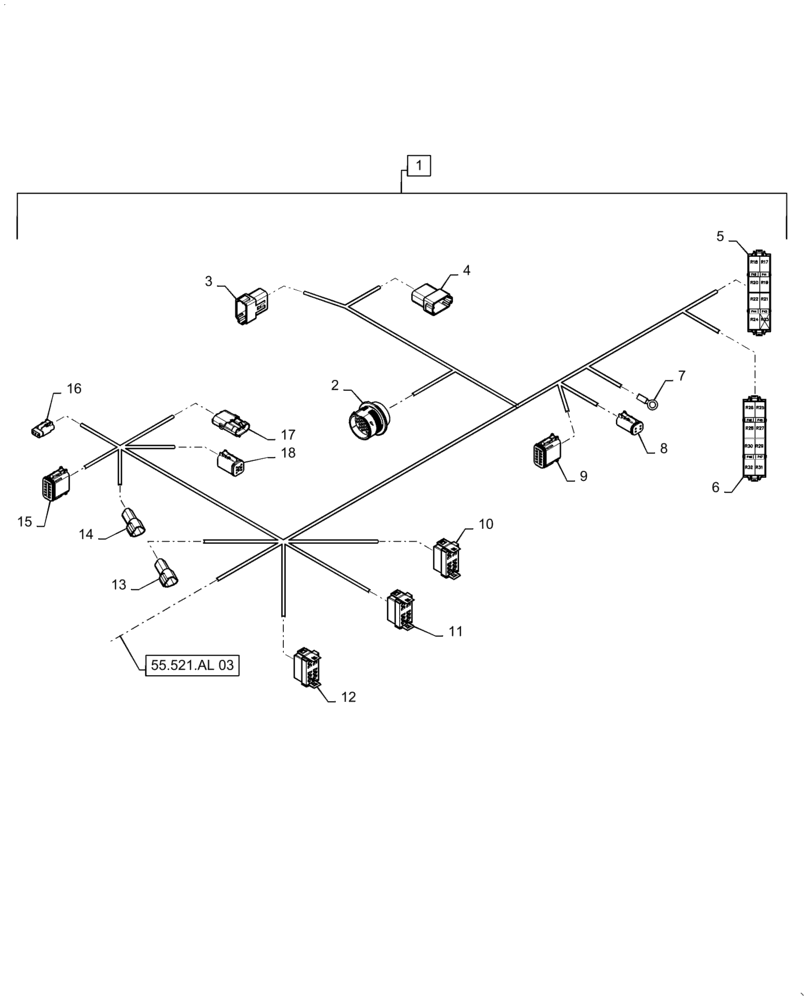

Запчасти Case IH 2240 (55.521.AL[02]) - RH CONSOLE, BOOM HYDRAULIC & SECTION CONTROL, HARNESS (55) - ELECTRICAL SYSTEMS

1

47556143

WIRE HARNESS

RH Console, Section Control / Hydraulic Harness, Complete, Incl 2 - 18

1шт.

2

87696945

MULTIPOLE CONNECTOR,Male, 31 Pole

XB-4M, Hydraulic Interface

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, XB-4M, Hydraulic Interface

21шт.

2

87271930

NUT

Plastic Panel Nut, XB-4M, Hydraulic Interface

1шт.

3

87700152

ELEC CONNECTOR,Female, 12 Cavities

Male, 12 Cavity, C036F, Hyd / Cab Interface 2, Keying B

1шт.

3

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, C036F, Hyd / Cab Interface 2, Keying B

7шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, C036F, Hyd / Cab Interface 2, Keying B

1шт.

4

87695724

ELEC CONNECTOR,Male, 12 Pole

C035F, Hyd / Cab Interface 1, Keying A

1шт.

4

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, Hyd / Cab Interface 1, Keying A

10шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, Hyd / Cab Interface 1, Keying A

1шт.

5

87314762

FUSE HOLDER

Female, 48 Cavity, FK1-D

1шт.

5

84153403

TERMINAL

Female, Tin, FK1-D

10шт.

5

87341995

TERMINAL

Female, Tin,

12шт.

5

84157161

RELAY,12V, 20A

FK1-D

5шт.

6

87314762

FUSE HOLDER

Female, 48 Cavity, FK1-E

1шт.

6

87341995

TERMINAL

Female, Tin, FK1-E

17шт.

6

84153403

TERMINAL

Female, Tin, FK1-E

23шт.

6

84127702

FUSE,10A, Mini, Red

FK1-E

2шт.

6

84127703

FUSE,15A, Mini, Blue

FK1-E

1шт.

6

84157161

RELAY,12V, 20A

FK1-E

8шт.

7

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

G1, Chassis Ground

1шт.

8

87694153

CONTACT HOUSING,Female, 4 Cavities

X-038F, Hyd / Prod Interface

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, X-038F, Hyd / Prod Interface

4шт.

8

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, X-038F, Hyd / Prod Interface

1шт.

9

225403C1

CONNECTOR, ELEC

Female, 12 Cavity, X-040F, Hyd / Prod Interface, Keying C

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, X-040F, Hyd / Prod Interface, Keying C

11шт.

9

87695651

LOCKING TAB,Wedge Lock

Lock, X-040F, Hyd / Prod Interface, Keying C

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Sealing, X-040F, Hyd / Prod Interface, Keying C

1шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-120F, Sparge PSI, Inc / Dec

1шт.

10

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Female, X-120F, Sparge PSI, Inc / Dec

3шт.

10

87697752

TERMINAL

Female, Tin, X-120F, Sparge PSI, Inc / Dec

3шт.

11

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-122F, Master Power, On / Off

1шт.

11

87697752

TERMINAL

Female, Tin, X-122F, Master Power, On / Off

3шт.

11

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Female, X-122F, Master Power, On / Off

2шт.

12

BN310610

ELEC CONNECTOR,Female, 10 Pin

X-069F, Pump Start Switch

1шт.

12

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Female, X-069F, Pump Start Switch

5шт.

13

87695723

ELEC CONNECTOR,Male , 3 Pole

X-147M, TPS

1шт.

13

87695623

ELEC. TERMINAL PIN

Male, Stamped, X-147M, TPS

3шт.

13

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, X-147M, TPS

1шт.

14

87695723

ELEC CONNECTOR,Male , 3 Pole

X-123M, Axle Width, In / Out

1шт.

14

87695623

ELEC. TERMINAL PIN

Male, Stamped, X-123M, Axle Width, In / Out

3шт.

14

87695625

WIRE CONNECTOR,Locking, Green

Wedge Lock, X-123M, Axle Width, In / Out

1шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

X-101F, Control Handle

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, X-101F, Control Handle

11шт.

15

87695651

LOCKING TAB,Wedge Lock

Lock, X-101F, Control Handle

1шт.

16

87696551

CONTACT HOUSING,Female, 3 Pole

X-145F, Hydro Control Lever, Neutral Switch

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, X-145F, Hydro Control Lever, Neutral Switch

2шт.

16

87705586

WEDGE

Lock, X-145F, Hydro Control Lever, Neutral Switch

1шт.

17

87692858

ELEC CONNECTOR,Male

3 Cavity, X-146M, Hydro Control Lever Reverse

1шт.

17

87692880

CABLE TERMINAL

Male, Tin, X-146M, Hydro Control Lever Reverse

2шт.

17

87680701

SEAL

Cable Seal, Green, X-146M, Hydro Control Lever Reverse

1шт.

18

87694112

ELEC CONNECTOR,Female, 6 Pole

X-100F Control Handle Power

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, X-100F Control Handle Power

4шт.

18

87694150

LOCKING TAB,Wedge Lock

Lock, X-100F Control Handle Power

1шт.
