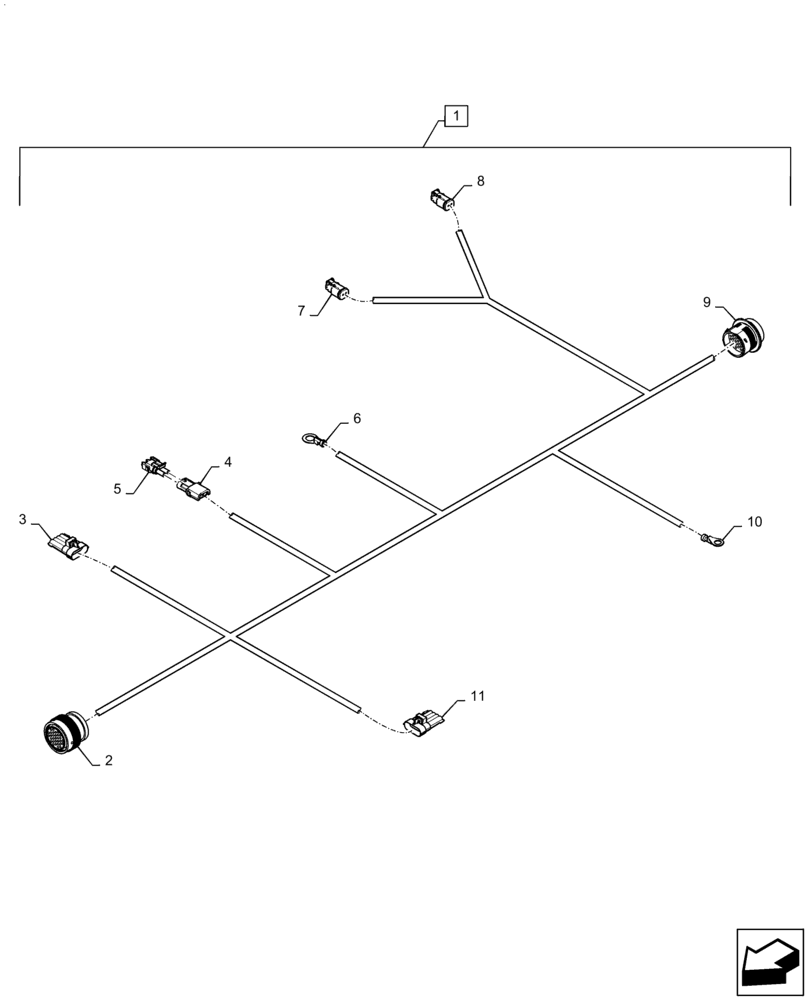

Запчасти Case IH 2240 (55.515.AH[10]) - HYDRAULIC CONTROL, FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47434039

WIRE HARNESS

Hydraulic Control, Complete, Incl 2 -

1шт.

2

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

XB-4F, Hydraulic Bulkhead Interface

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

XB-4F, Hydraulic Bulkhead Interface

21шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, XB-4F, Hydraulic Bulkhead Interface

10шт.

3

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-429M, Sensor, RH Antilift

1шт.

3

84182584

TERMINAL

Male, Tin, X-429M, Sensor, RH Antilift

1шт.

3

87690460

TERMINAL

Male, Tin, X-429M, Sensor, RH Antilift

2шт.

3

87689629

SEAL

Cable, Red, X-429M, Sensor, RH Antilift

3шт.

3

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, X-429M, Sensor, RH Antilift

1шт.

3

87689643

CLIP,4.8mm ID

Secondary Lock, Black, X-429M, Sensor, RH Antilift

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-413M, Acc Power

1шт.

4

87692882

ELEC. TERMINAL PIN

Male, Tin, X-413M, Acc Power

2шт.

4

87680701

SEAL

Cable, X-413M, Acc Power

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap, X-413F, Acc Power

1шт.

5

87686742

PLUG

Cavity Plug, Green, X-413F, Acc Power

2шт.

6

84123827

TERMINAL

G1-HF, Chassis Ground

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

X-412F, Boom Up

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-412F, Boom Up

2шт.

7

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, X-412F, Boom Up

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

X-415F, Boom Down

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-415F, Boom Down

2шт.

8

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, X-415F, Boom Down

1шт.

9

87696944

ELEC CONNECTOR,Female, 31 Pole

XB-40F, Interface

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

XB-40F, Interface

26шт.

9

84068583

PLUG,12 - 16 Ga, White

Sealing, XB-40F, Interface

5шт.

9

87271930

NUT

Panel, Plastic, XB-40F, Interface

1шт.

10

84127303

TERMINAL

M8, PD5, Battery Power

1шт.

11

87697723

ELEC CONNECTOR,Male, 4 Cavities

X-428M, Sensor, LH Antilift

1шт.

11

84182584

TERMINAL

Male, Tin, X-428M, Sensor, LH Antilift

3шт.

11

87689629

SEAL

Cable, X-428M, Sensor, LH Antilift

3шт.

11

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, X-428M, Sensor, LH Antilift

1шт.

11

87689643

CLIP,4.8mm ID

Secondary Lock, Black, X-428M, Sensor, LH Antilift

1шт.
