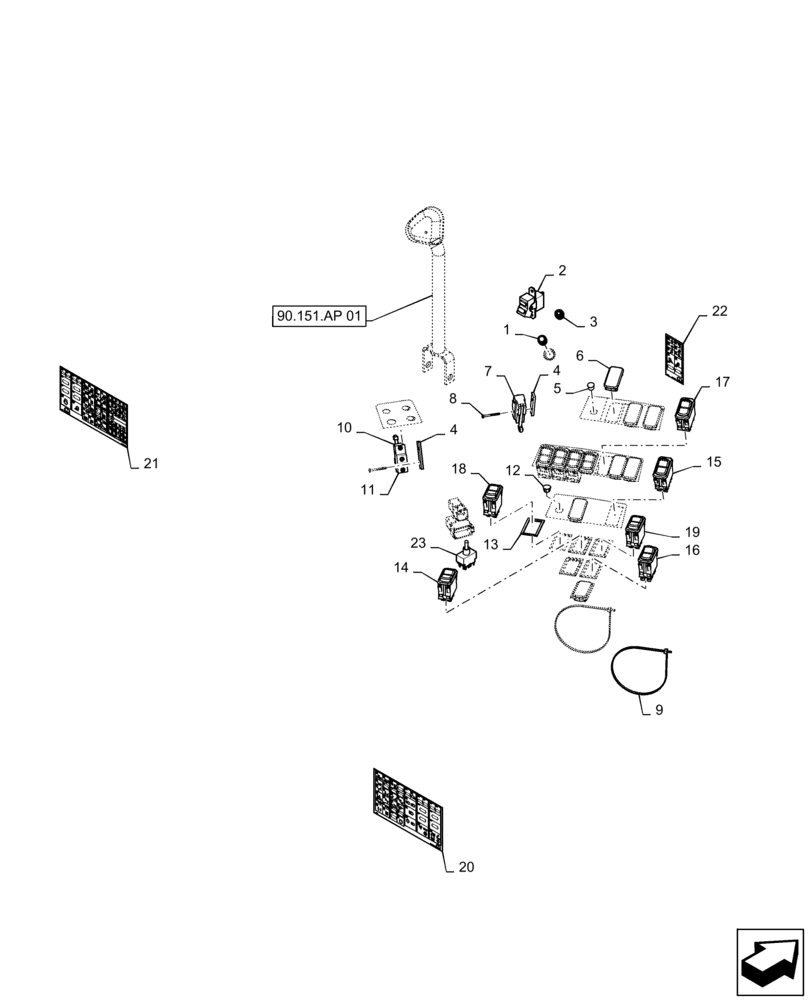

Запчасти Case IH 2240 (55.512.CS[01]) - RH ARMREST, SWITCHES & DECALS (55) - ELECTRICAL SYSTEMS

1

87271265

PUSH BUTTON SWITCH

Boom, On / Off

1шт.

2

118685A1

SWITCH

Boom Height, Rocker

1шт.

3

BN324896

SWITCH

LH / RH Boom Position Control

2шт.

4

87492830

PLATE

Prop Switch Mount

2шт.

5

86625127

PLUG,Dome, .375" hole, Nylon

4шт.

6

BN322626

PLUG

Switch Blanking

7шт.

7

BN323496

TOGGLE SWITCH

Nuetral Safety

1шт.

8

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

9

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

10

BN323495

ADAPTER

Reverse

1шт.

11

141655A1

SWITCH

Reverse

1шт.

12

282056A1

PLUG

Blanking

1шт.

13

BN325825

SPACER

Switch

6шт.

14

87397313

SWITCH

One Touch Fold

1шт.

15

87270708

SWITCH

Range Select

1шт.

16

84541429

SWITCH

Main Power

1шт.

17

BN321910

SWITCH

Boom Section

5шт.

18

BN321913

SWITCH

LH Fold

1шт.

19

BN321915

SWITCH

RH Fold

1шт.

20

84588825

DECAL

Rear Relay And Fuse Box

1шт.

21

84588826

DECAL

LH Relay And Fuse Box

1шт.

22

47440047

DECAL

RH Relay And Fuse Box

1шт.

23

BN323620

SWITCH

Axle In / Out

1шт.
