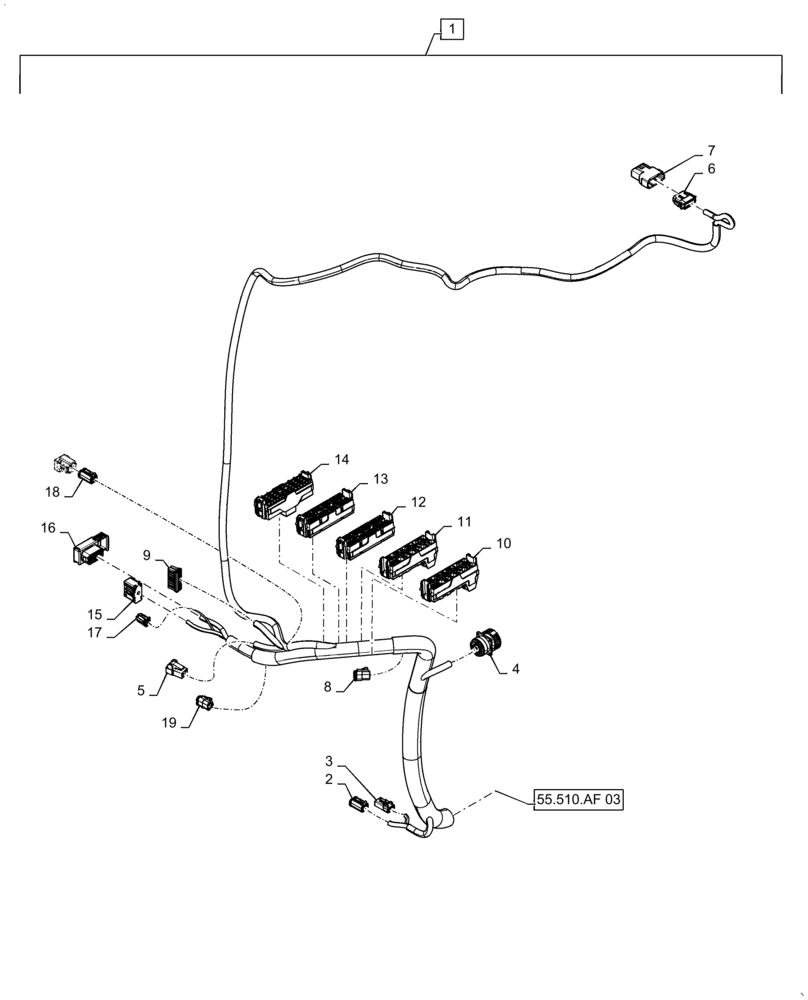

Запчасти Case IH 2240 (55.510.AF[04]) - MAIN CAB HARNESS, PART III (55) - ELECTRICAL SYSTEMS

1

47548136

WIRE HARNESS

Complete, Incl 2 - 19

1шт.

2

87694101

ELEC CONNECTOR,Female, 4 Cavities

Female, 4 Cavity, C004F, A/C Fan

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, C004F, A/C Fan

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C004F, A/C Fan

3шт.

2

87694148

ELEC CONNECTOR

Wedge Lock, C004F, A/C Fan

1шт.

3

87710849

SOCKET/RECEPTACLE

Female, 2 Cavity, C005F, A/C Fan

1шт.

3

87695923

TERMINAL

Female, Nickel, Stamped, C005F, A/C Fan

2шт.

3

84148916

LOCKING TAB

Wedge Lock, C005F, A/C Fan

1шт.

4

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

C026F, Service Tool

1шт.

4

82019149

TERMINAL

Male, Gold, C026F, Service Tool

7шт.

4

87538104

PROTECTION CAP

C026F, Service Tool

1шт.

5

82011938

WIRE CONNECTOR

Female, 2 Cavity, CM7M, Cab Connection

1шт.

5

19205894

TERMINAL CONNECTOR

Female, Tin, CM7M, Cab Connection

2шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

C432F, GPS Antenna

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, C432F, GPS Antenna

8шт.

6

87705198

WEDGE

Lock, Orange, C432F, GPS Antenna

1шт.

6

84807680

PLUG

Sealing, Red, C432F, GPS Antenna

4шт.

7

87700155

ELEC CONNECTOR,Female, 12 Cavities

Cover, Male, 12 Cavity, C432M, GPS Antenna

1шт.

7

84807680

PLUG

Sealing, C432M, GPS Antenna

12шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

C726F, Can Terminator

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped, C726F, Can Terminator

2шт.

8

84147090

LOCKING TAB,Wedge Lock

Lock, Blue, C726F, Can Terminator

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Sealing, C726F, Can Terminator

1шт.

8

84058092

CONTACT HOUSING,120 Ohm Resistor

C726F, Can Terminator

1шт.

9

87689502

ELEC CONNECTOR

Female, 20 Cavity, CM8F, Cab Harness

1шт.

9

12319744

CABLE TERMINAL

Female, Tin, CM8F, Cab Harness

6шт.

9

12483444

CABLE TERMINAL

Female, Tin, CM8F, Cab Harness

12шт.

9

87691922

ELEC CONNECTOR

Female, Tin, CM8F, Cab Harness

1шт.

10

87314761

FUSE HOLDER

FK1-A, Fuse Module

1шт.

10

10324990

TERMINAL

Female, Tin, FK1-A, Fuse Module

44шт.

10

84153403

TERMINAL

Female, FK1-A, Fuse Module

17шт.

10

84153401

TERMINAL

Female, FK1-A, Fuse Module

1шт.

10

84153400

TERMINAL

Female, FK1-A, Fuse Module

2шт.

10

84153830

FUSE,5A, Mini, Beige

FK1-A, Fuse Module

4шт.

10

84152583

FUSE,7.5A, Mini, Brown

FK1-A, Fuse Module

2шт.

10

84127702

FUSE,10A, Mini, Red

FK1-A, Fuse Module

10шт.

10

84127703

FUSE,15A, Mini, Blue

FK1-A, Fuse Module

8шт.

10

84127704

FUSE,20A, Mini, Yellow

FK1-A, Fuse Module

3шт.

10

84127705

FUSE,25A, Mini, White

FK1-A, Fuse Module

2шт.

10

84127708

FUSE,30A, Mini, Green

FK1-A, Fuse Module

1шт.

10

82012388

FUSE,30A, Maxival, Green

FK1-A, Fuse Module

2шт.

11

87314762

FUSE HOLDER

FK1-B, Fuse Module

2шт.

11

10324990

TERMINAL

FK1-B, Fuse Module

16шт.

11

87342003

TERMINAL

FK1-B, Fuse Module

8шт.

11

10324790

TERMINAL

FK1-B, Fuse Module

2шт.

11

84153403

TERMINAL

FK1-B, Fuse Module

8шт.

11

87341995

TERMINAL

FK1-B, Fuse Module

6шт.

11

84157161

RELAY,12V, 20A

FK1-B, Fuse Module

7шт.

11

84127702

FUSE,10A, Mini, Red

FK1-B, Fuse Module

2шт.

11

84127703

FUSE,15A, Mini, Blue

FK1-B, Fuse Module

1шт.

11

84127704

FUSE,20A, Mini, Yellow

FK1-B, Fuse Module

1шт.

12

87314762

FUSE HOLDER

FK1-C, Fuse Module

1шт.

12

10324990

TERMINAL

FK1-C, Fuse Module

14шт.

12

84153403

TERMINAL

FK1-C, Fuse Module

18шт.

12

87341995

TERMINAL

FK1-C, Fuse Module

12шт.

12

87342003

TERMINAL

FK1-C, Fuse Module

3шт.

12

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

FK1-C, Fuse Module

2шт.

12

84157161

RELAY,12V, 20A

FK1-C, Fuse Module

8шт.

12

84152583

FUSE,7.5A, Mini, Brown

FK1-C, Fuse Module

1шт.

12

84127702

FUSE,10A, Mini, Red

FK1-C, Fuse Module

2шт.

13

87314763

FUSE HOLDER

FK2-E, Fuse Module

1шт.

13

84153401

TERMINAL

FK2-E, Fuse Module

2шт.

13

84153403

TERMINAL

FK2-E, Fuse Module

2шт.

13

87341995

TERMINAL

FK2-E, Fuse Module

2шт.

13

87342003

TERMINAL

FK2-E, Fuse Module

2шт.

13

10324990

TERMINAL

FK2-E, Fuse Module

2шт.

13

87341931

RELAY,Mini ISO, 12V, 70A

FK2-E, Fuse Module

1шт.

13

84157161

RELAY,12V, 20A

FK2-E, Fuse Module

1шт.

14

87314763

FUSE HOLDER

FK2-D, Fuse Module

1шт.

14

84153400

TERMINAL

FK2-D, Fuse Module

2шт.

14

87342003

TERMINAL

FK2-D, Fuse Module

2шт.

14

87341995

TERMINAL

FK2-D, Fuse Module

2шт.

14

87341931

RELAY,Mini ISO, 12V, 70A

FK2-D, Fuse Module

1шт.

15

84149207

ELEC CONNECTOR

Female, 12 Cavity, G2.1 Connector

1шт.

15

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Female, G2.1 Connector

4шт.

15

87693249

ELEC. TERMINAL PIN

Female, Tin, G2.1 Connector

3шт.

15

87693733

RETAINER

Secondary Lock, 12 Cavity, G2.1

1шт.

15

87352750

CAP

Connector Cover, 12 Cavity, G2.1

1шт.

16

87680366

ELEC CONNECTOR,Female, 24 Cavities

Female, 24 Cavity, C017M, Turn Signal Module

1шт.

16

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

Female, C017M, Turn Signal Module

5шт.

16

87708543

CABLE TERMINAL

Female, Tin, C017M, Turn Signal Module

6шт.

16

87708542

CABLE TERMINAL

Female, Tin, C017M, Turn Signal Module

1шт.

16

87714248

LOCKING TAB,Wedge Lock

Cam, Purple, C017M, Turn Signal Module

1шт.

17

84177907

ELEC CONNECTOR

Female, 3 Cavity, C020F, Acc Port

1шт.

17

87693249

ELEC. TERMINAL PIN

Female, Tin, C020F, Acc Port

3шт.

17

84178477

RETAINER

Secondary Lock, Blue, C020F, Acc Port

1шт.

18

87694101

ELEC CONNECTOR,Female, 4 Cavities

Female, 4 Cavity, C019F, Diode

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C019F, Diode

4шт.

18

87694148

ELEC CONNECTOR

Wedge Lock, Orange, C019F, Diode

1шт.

18

87270520

DIODE

4 Cavity Receptacle, C019F, Diode

1шт.

19

87695580

ELEC CONNECTOR,Female, 3 Pole

C139F, Can Terminator

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

C139F, Can Terminator

3шт.

19

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Green, C139F, Can Terminator

1шт.

19

84147090

LOCKING TAB,Wedge Lock

Wedge Lock, Blue, C139F, Can Terminator

1шт.

19

84058092

CONTACT HOUSING,120 Ohm Resistor

C139F, Can Terminator

1шт.
