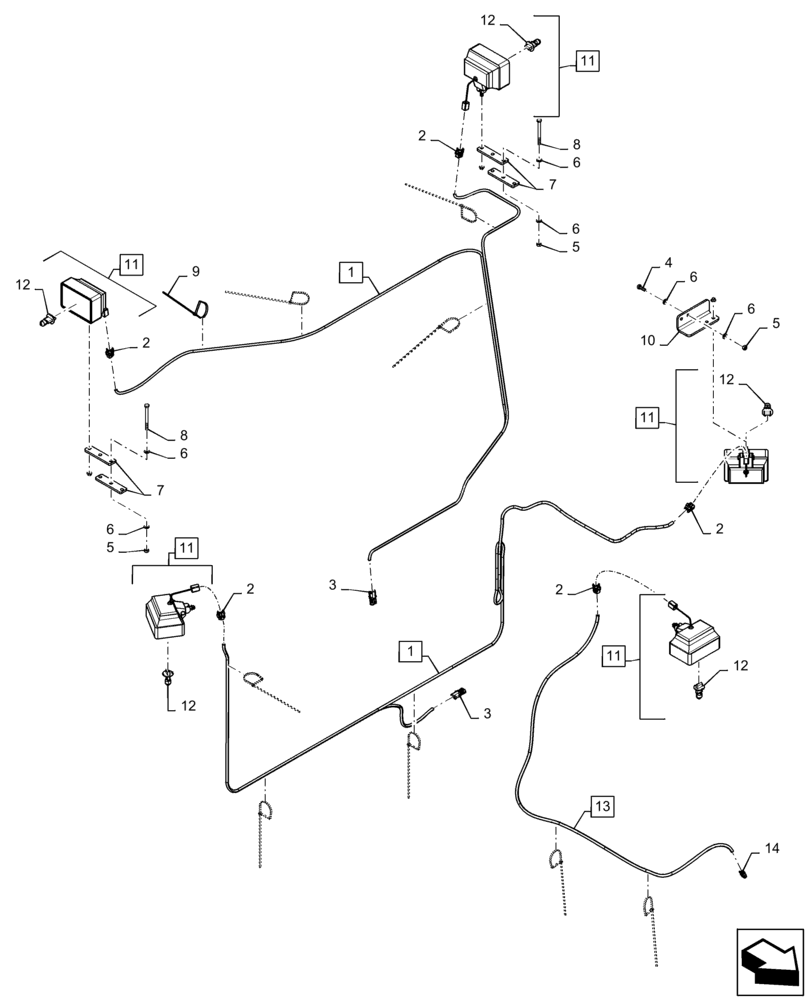

Запчасти Case IH 2240 (55.404.BS[01]) - MIDSHIP LIGHT PACKAGE (55) - ELECTRICAL SYSTEMS

1

84368539

WIRE HARNESS

Midship Lights, Incl 2, 3

2шт.

2

84375388

WIRE CONNECTOR

Lights, X-646F2, X-128

4шт.

2

84375390

TERMINAL

Lights, X-646F2, X-128

8шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-627M2

2шт.

3

87692882

ELEC. TERMINAL PIN

Connector, X-627M2

4шт.

3

87680710

SEAL

Terminal, X-627M2

4шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

7

47560293

BRACKET

Rear

4шт.

8

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

4шт.

9

BN570007

STRAP

14 1/2"

16шт.

10

47447770

BRACKET

Boom Light

1шт.

11

87272830

SIDE LAMP ASSY

Work Light, Incl 12

5шт.

12

1312210C2

BULB,Halogen H3, 12V, 55W

55W H3

5шт.

13

47554729

WIRE HARNESS

Light Extension, Operator Station Light, Incl 2 And 14

1шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

Female, 2 Pole, X-508F

1шт.
