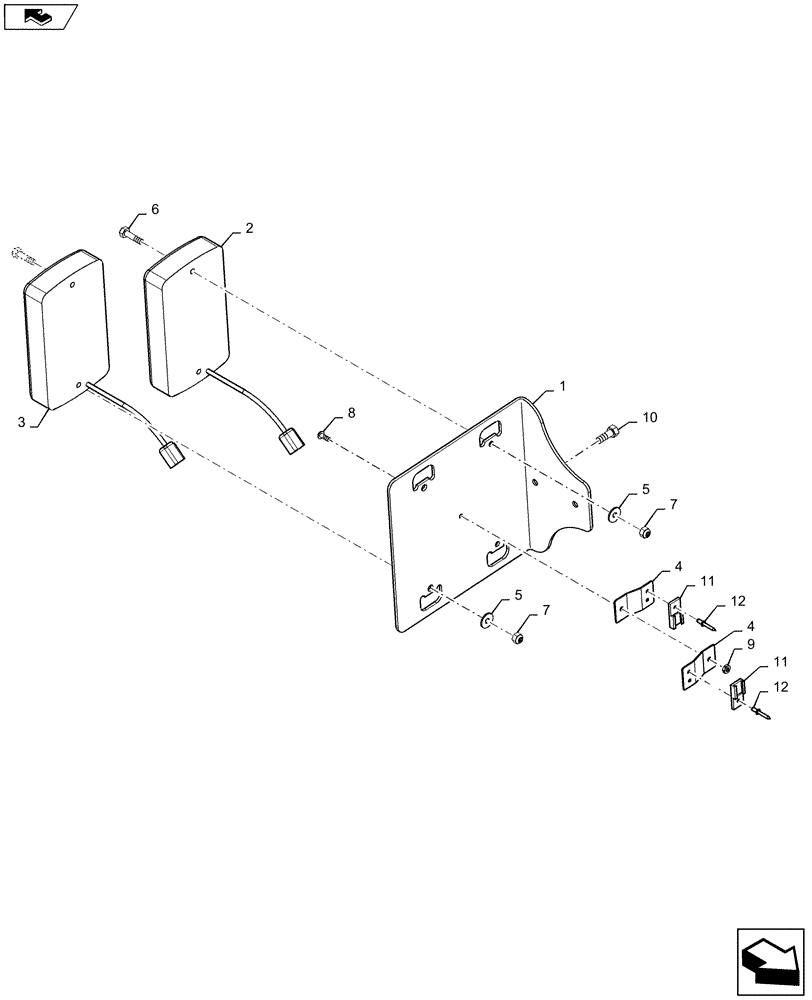

Запчасти Case IH 2240 (55.404.BM[01]) - TAIL LAMP ASSY, (55) - ELECTRICAL SYSTEMS

1

84426080

MOUNT

Rear Light

2шт.

2

84385294

LAMP

Red LED

2шт.

3

84385299

LAMP

Amber LED

2шт.

4

87267086

MOUNTING PLATE

Deutsch Retainer

4шт.

5

BN50138

WASHER,1/4", SS

16шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

2шт.

9

225-30210

NUT,#10-32, Stainless

2шт.

10

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

4шт.

11

BN322875

MOUNTING PLATE

DT Series

4шт.

12

87029192

RIVET,Pop, 3/16" x 3/8", Stainless

4шт.
