(55.404.AL[01]) - HARNESS, FRONT LIGHTS

Запчасти Case IH 2240 (55.404.AL[01]) - HARNESS, FRONT LIGHTS (55) - ELECTRICAL SYSTEMS

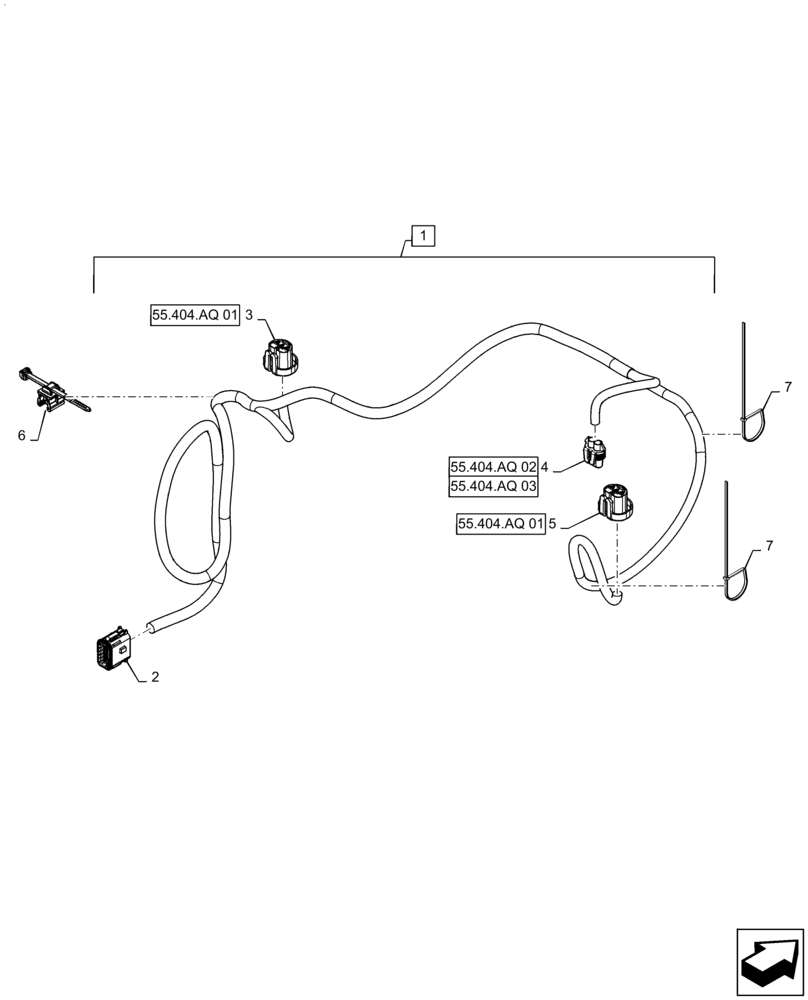

Схема запчастей Case IH 2240 - (55.404.AL[01]) - HARNESS, FRONT LIGHTS (55) - ELECTRICAL SYSTEMS
1
3
55.404.aq 02
55.404.aq 03
55.404.aq 01
4
5
6
7
7
55.404.aq 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47403173

WIRE HARNESS

Hood Lights

1шт.

2

87696075

ELEC CONNECTOR

Frame Harness Interface, X640F

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Frame Harness Interface, X640F

6шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Frame Harness Interface, X640F

6шт.

2

87695651

LOCKING TAB,Wedge Lock

Frame Harness Interface, X640F

1шт.

3

87697641

ELEC CONNECTOR

LH Headlight, X618F

1шт.

3

84364573

SEAL

LH Headlight, X618F

1шт.

3

198715A1

CONNECTOR, ELEC

LH Headlight, X618F

1шт.

4

87686685

WIRE CONNECTOR,Female

Center Work Light, X612F

1шт.

4

87686740

RETAINER

Center Work Light, X612F

1шт.

5

87697641

ELEC CONNECTOR

RH Headlight, X618F

1шт.

5

84364573

SEAL

RH Headlight, X618F

1шт.

5

198715A1

CONNECTOR, ELEC

RH Headlight, X618F

1шт.

6

47391607

FASTENER

Edge Clip

2шт.

7

BN570007

STRAP

Black, 14-1/2" Long

4шт.
