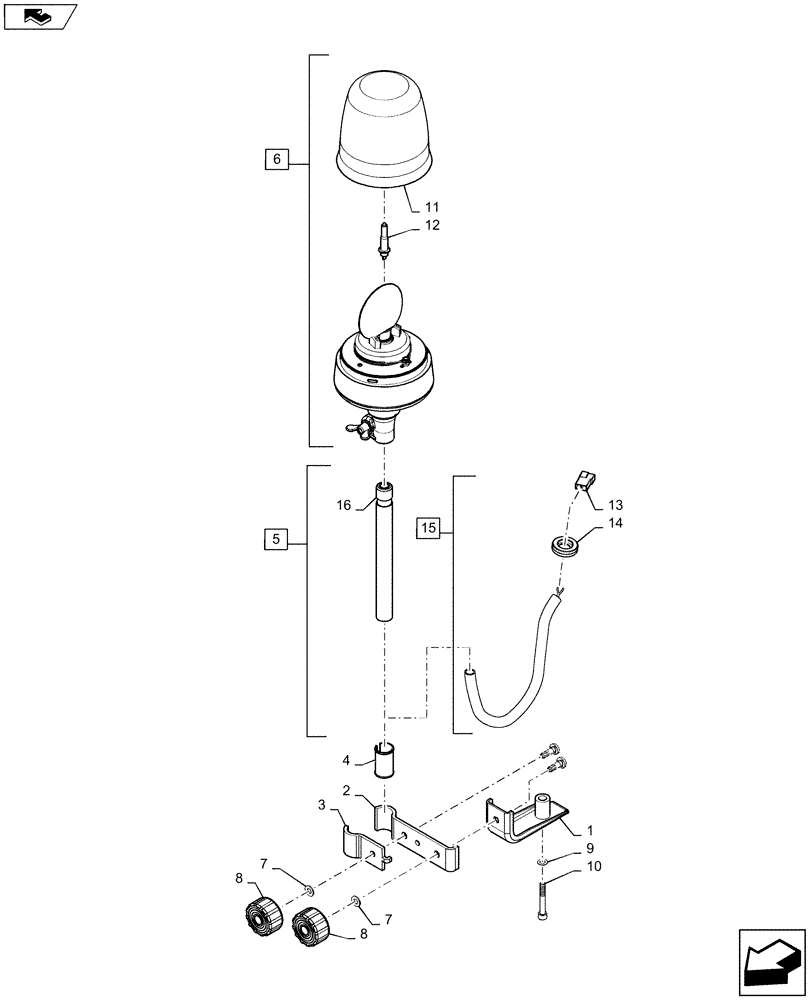

Запчасти Case IH 2240 (55.404.AC[02]) - DUAL BEACON LIGHT (55) - ELECTRICAL SYSTEMS

1

84343080

BRACKET

Assembly, Black

2шт.

2

84343028

BRACKET

Assembly, Black

2шт.

3

82028975

BRACKET

Beacon Clamp

2шт.

4

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

Protective

2шт.

5

84592146

WIRE HARNESS

Beacon Adapter, Incl 13 Through 16

2шт.

6

84337818

BEACON

12v, Flexible Head, Incl 11 And 12

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

82016257

KNOB

Outside Mirror Adjusting

4шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6.6 x18 x1.6mm CST DOR

2шт.

10

14302226

SCREW

M8 x 55, Hex Socket

2шт.

11

84344644

LENS

Amber

2шт.

12

86616248

BULB,H1, 12V, 55W

2шт.

13

87691951

WIRE CONNECTOR

2 Pin, X-024

2шт.

13

225187C1

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

X-024

4шт.

14

10397780

INSULATING RING

Grommet

2шт.

15

84591874

WIRE HARNESS

Beacon, Incl 13 And 14

2шт.

16

82027653

SUPPORT

Beacon, With Socket

2шт.

17

84275431

BEACON SWITCH

1шт.
