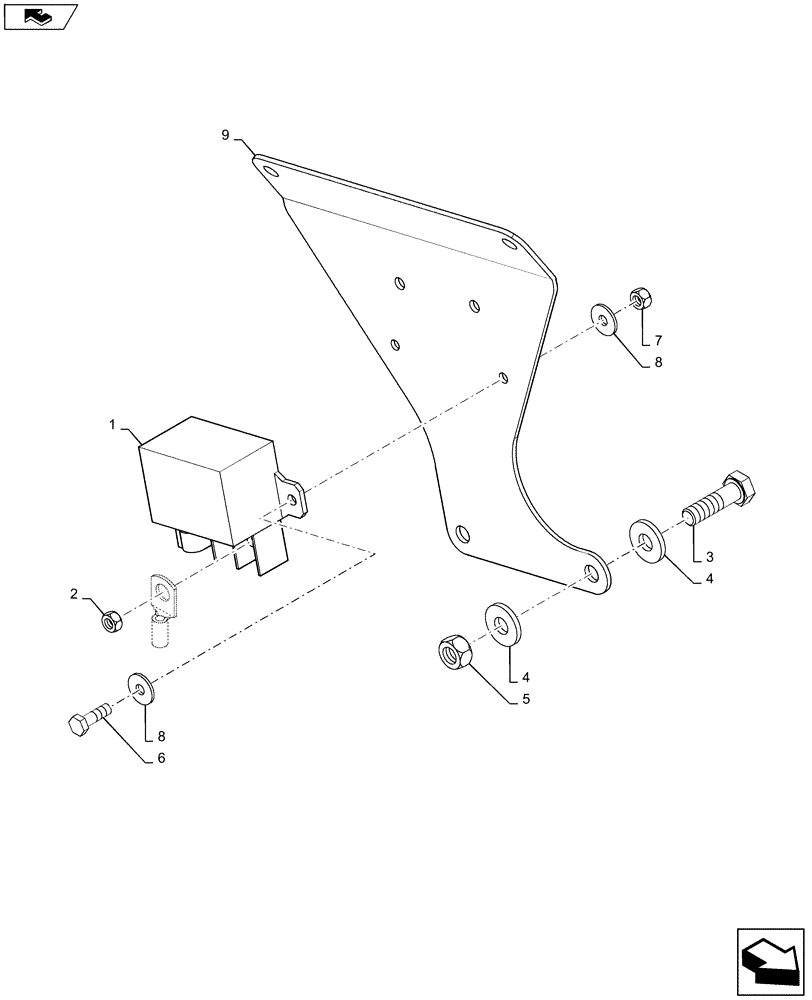

Запчасти Case IH 2240 (55.201.AG[01]) - RELAY, COLD START AND INTERMEDIATE (55) - ELECTRICAL SYSTEMS

1

86619908

RELAY,12V, 150A

Cold Start, Itermediate

1шт.

2

87698779

NUT

M6, Class 10, DOR

2шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

8

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 MM, DOR

4шт.

9

84388174

MOUNT

Relay

1шт.
