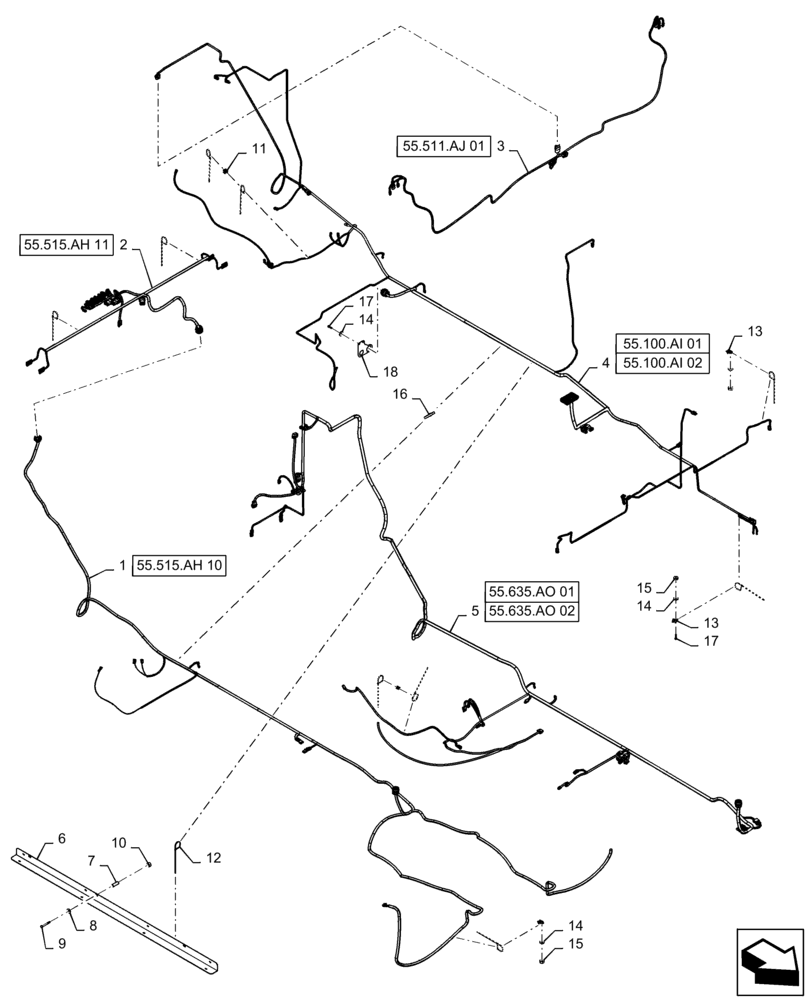

Запчасти Case IH 2240 (55.101.AC[01]) - CHASSIS WIRE HARNESSES (55) - ELECTRICAL SYSTEMS

1

47434039

WIRE HARNESS

Hydraulic Control, Frame

1шт.

See 55.515.AH 10

1шт.

2

47547022

WIRE HARNESS

Hydraulic Control, Center Section

1шт.

See 55.515.AH 11

1шт.

3

84281618

HARNESS

Rear Light Extension

1шт.

See 55.511.AJ 01

1шт.

4

47600198

WIRE HARNESS

Main Frame

1шт.

See 55.100.AI 01 And 55.100.AI 02

1шт.

5

47600669

WIRE HARNESS

Product Control

1шт.

See 55.635.A0 01 And 55.635.A0 02

1шт.

6

84426096

Harness, Mounting Bracket

1шт.

7

84388269

SPACER

Electrical Tray

3шт.

8

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

3шт.

9

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

3шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

11

84318895

SPACER,17.97mm H

3шт.

12

BN570007

STRAP

14-1/2"

45шт.

13

84407295

BASE

M8 Stud

10шт.

14

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

11шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

9шт.

16

86991007

CABLE TIE,509mm L

20"

2шт.

17

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

84589904

MOUNT

Electrical BulkHead

1шт.
