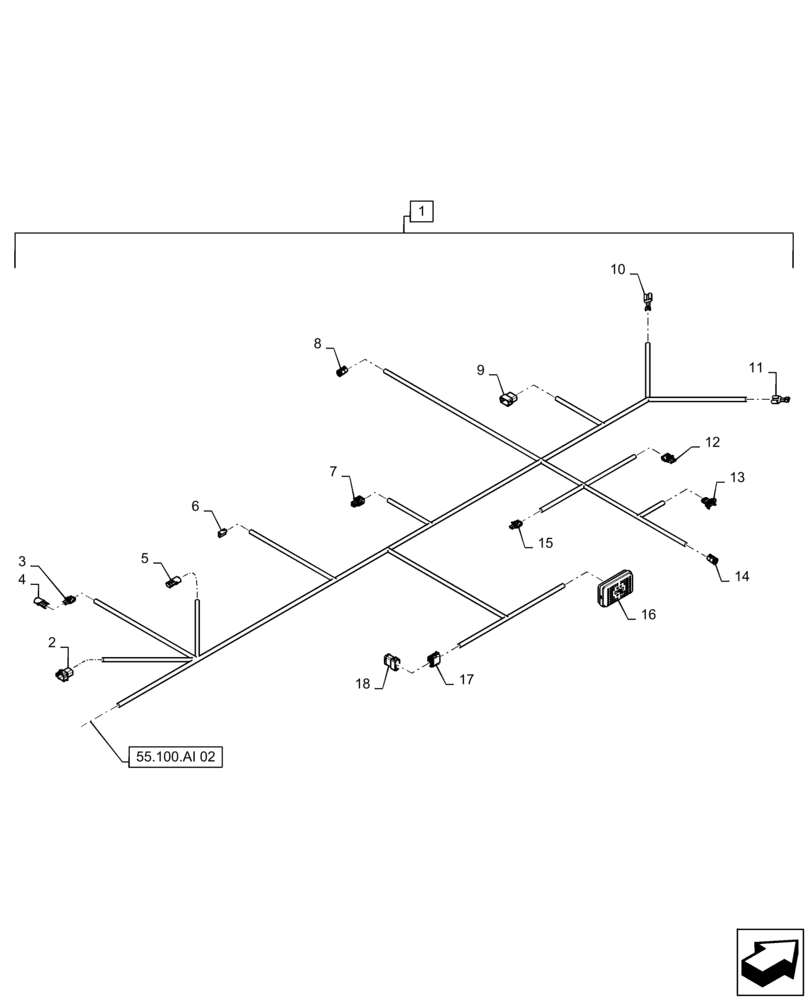

Запчасти Case IH 2240 (55.100.AI[01]) - FRONT MAIN FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47600198

WIRE HARNESS

Main Frame, Complete, Incl 2 - 18

1шт.

2

225320C1

ELEC CONNECTOR

Male, 8 Cavity, X-800M, Remote Interface

1шт.

2

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, X-800M, Remote Interface

5шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, X-800M, Remote Interface

3шт.

2

225322C1

WEDGE

Lock, X-800M, Remote Interface

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

X-627F, Rear Boom Work Lights

1шт.

3

87692856

CABLE TERMINAL

Female, Tin, X-627F, Rear Boom Work Lights

2шт.

3

87680701

SEAL

Cable, Green, X-627F, Rear Boom Work Lights

2шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap, CAP627

1шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

X-630M, PB Remote Interface

1шт.

5

87692882

ELEC. TERMINAL PIN

Male, Tin, X-630M, PB Remote Interface

2шт.

5

87680701

SEAL

Cable, Green, X-630M, PB Remote Interface

2шт.

6

87693325

ELEC CONNECTOR,Female, 2 Cavities

Female, 2 Cavity, X-625F Washer

1шт.

6

87709400

ELEC. TERMINAL PIN

Female, Tin, X-625F Washer

1шт.

6

87697667

TERMINAL

Female, Brass, X-625F Washer

1шт.

7

87692862

ELEC CONNECTOR

4 Cavity, X-603F, Radar

1шт.

7

87692856

CABLE TERMINAL

Female, Tin, X-603F, Radar

4шт.

7

87680701

SEAL

Cable, Green, X-603F, Radar

4шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

X-622F, LH Turn / Running Light

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-622F, LH Turn / Running Light

3шт.

8

87695646

WEDGE

Lock, X-622F, LH Turn / Running Light

1шт.

9

87695724

ELEC CONNECTOR,Male, 12 Pole

X-640M, Head Light Interface

1шт.

9

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped, X-640M, Head Light Interface

8шт.

9

84068583

PLUG,12 - 16 Ga, White

Sealing, X-640M, Head Light Interface

4шт.

9

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, X-640M, Head Light Interface

1шт.

10

84177908

TERMINAL

X-615F, Horn Power

1шт.

11

84177908

TERMINAL

X-615F, Horn Ground

1шт.

12

87644909

WIRE CONNECTOR,Female, 3 Pins

3 Cavity, X-610F, Fuel Level

1шт.

12

87692856

CABLE TERMINAL

Female, Tin, X-610F, Fuel Level

2шт.

12

87680701

SEAL

Cable, Green, X-610F, Fuel Level

2шт.

13

8602416

CONNECTOR,ELECTRIC

Female, 3 Cavity, X-666F, Water In Fuel

1шт.

13

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Pre-Tin, X-666F, Water In Fuel

3шт.

13

87691478

SEAL

Wire, X-666F, Water In Fuel

3шт.

14

87695580

ELEC CONNECTOR,Female, 3 Pole

X-623F, RH Turn / Running Light

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-623F, RH Turn / Running Light

3шт.

14

87695646

WEDGE

Lock, X-623F, RH Turn / Running Light

1шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

X-815F, AC Low Pressure

1шт.

15

87692856

CABLE TERMINAL

Female, Tin, X-815F, AC Low Pressure

1шт.

15

87680701

SEAL

Cable, Green, X-815F, AC Low Pressure

1шт.

16

437552A1

ELEC CONNECTOR,Female, 102 Pin

CM6F, Main Bulkhead

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Female, Nickel, Stamped, CM6F, Main Bulkhead

45шт.

16

84819143

TERMINAL CONNECTOR,Female, 4.5 - 8 mm2

CM6F, Main Bulkhead

2шт.

16

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

CM6F, Main Bulkhead

2шт.

16

87695923

TERMINAL

Female, Nickel, Stamped, CM6F, Main Bulkhead

1шт.

16

84068583

PLUG,12 - 16 Ga, White

Sealing, CM6F, Main Bulkhead

43шт.

16

87716558

PLUG,Plug, Sealing

Sealing, White, CM6F, Main Bulkhead

4шт.

16

87717028

ELEC CONNECTOR

Lock, CM6F, Main Bulkhead

1шт.

16

87717030

ELEC CONNECTOR

Lock, CM6F, Main Bulkhead

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

CS47F, Splice

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

CS47F, Splice

12шт.

17

87695651

LOCKING TAB,Wedge Lock

Lock, CS47F, Splice

1шт.

18

87269436

SOCKET/RECEPTACLE

Bussbar, 12 Cavity, S047M, Splice Pack

1шт.
