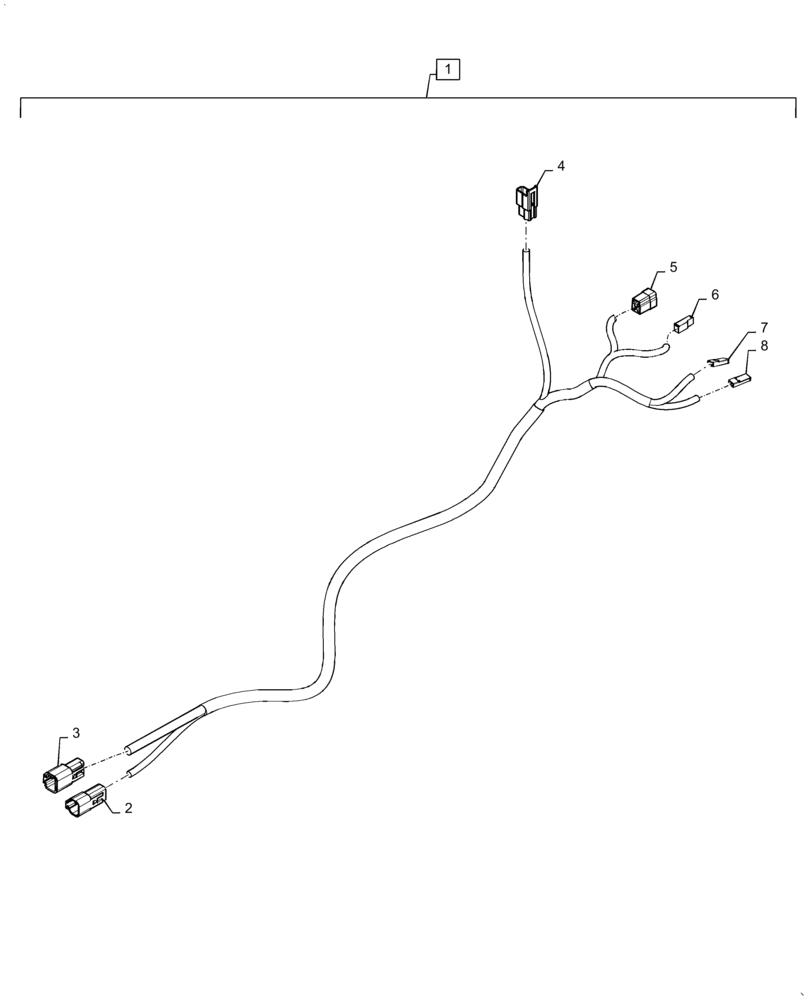

Запчасти Case IH 2240 (55.050.AY[01]) - HVAC BLOWER HARNESS (55) - ELECTRICAL SYSTEMS

1

84470772

WIRE HARNESS

HVAC Blower, Incl 2 - 8

1шт.

2

87694102

ELEC CONNECTOR

Male, 4 Pole, Cab / Blower Interface, C004M

1шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Stamped, Nickel, Cab / Blower Interface, C004M

2шт.

2

87695623

ELEC. TERMINAL PIN

Male, Stamped, Nickel, Cab / Blower Interface, C004M

2шт.

2

87694145

ELEC CONNECTOR

Wedge Lock, Cab / Blower Interface, C004M

1шт.

3

84190315

WIRE CONNECTOR

Male, 2 Pole, Cab / Blower Interface, C005M

1шт.

3

87704524

ELEC CONNECTOR,Pin, Size 12

Male, Stamped, Nickel, Cab / Blower Interface, C005M

2шт.

3

84190316

WIRE CONNECTOR

Wedge Lock, Cab / Blower Interface, C005M

1шт.

4

87697530

ELEC CONNECTOR

Male, 2 Pole, Pressuizer, C022M

1шт.

4

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

Male, Long Terminal, Tin, Pressuizer, C022M

2шт.

5

266516C1

CONNECTOR, ELEC

Female, 3 Pole, 3 Way Resistor Connector, C023F

1шт.

5

87688855

TERMINAL

Female, Tin, 3 Way Resistor Connector, C023F

3шт.

6

87675193

ELEC CONNECTOR

Female, 1 Pole, Second Speed, C030F

1шт.

6

84161811

TERMINAL

Female, Pre-Tin, Second Speed, C030F

1шт.

7

87705140

TERMINAL

Female, 1 Pole, Blower Motor +, C031F

1шт.

7

87705195

TERMINAL

Female, Tin, Blower Motor +, C031F

1шт.

8

87705140

TERMINAL

Female, 1 Pole, Blower Motor -, C043F

1шт.

8

87705195

TERMINAL

Female, Tin, Blower Motor -, C043F

1шт.
