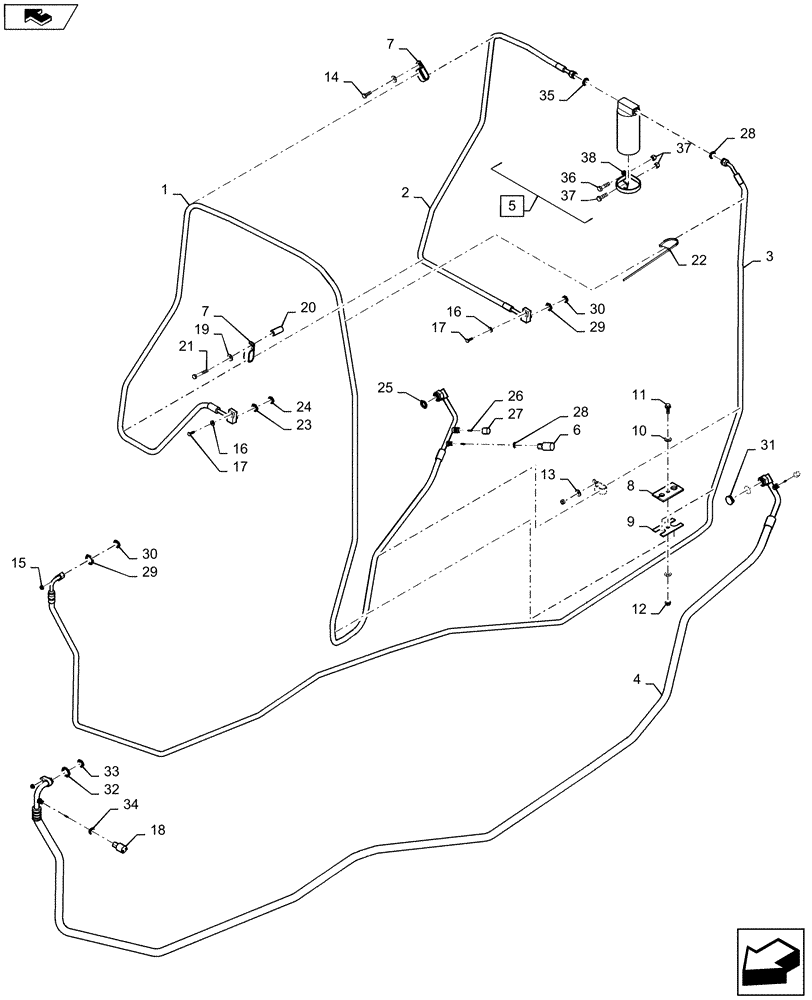

Запчасти Case IH 2240 (50.200.CA[01]) - AIR CONDITIONER LINES (50) - CAB CLIMATE CONTROL
![Схема запчастей Case IH 2240 - (50.200.CA[01]) - AIR CONDITIONER LINES (50) - CAB CLIMATE CONTROL](https://partsell.ru/storage/images/caseih/5169231.png)
№
Артикул
Название
Примечание
Количество
1
47439606
A/C HOSE
Compressor To Condenser
1шт.
2
47439607
A/C HOSE
Condenser To Dryer
1шт.
3
47439609
A/C HOSE
Dryer To Cab
1шт.
4
47439608
A/C HOSE
Cab To Compressor
1шт.
5
87379646
RECEIVER-DRYER
Incl 35, 36, 37, 38
1шт.
6
284273A2
SWITCH, A/C HIGH PRE
1шт.
7
L101181
CLAMP,0.75" D Clamping pipes x 2
Insulated, Double
5шт.
8
87270790
SEAL
A/C Hoses
1шт.
9
87270791
PLATE
A/C Hoses Seal
1шт.
10
87529316
WASHER,9mm ID x 21mm OD x 2.5mm Thk
7шт.
11
87529316
WASHER,9mm ID x 21mm OD x 2.5mm Thk
1шт.
12
86981461
FLANGE NUT,M8 x 1.25, Cl 8
1шт.
14
86980380
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
15
14059214
FLANGE NUT,Hex, M6 x 6 Thd, Cl 8
M6
2шт.
16
87529314
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
6.6 x 12.5MM DOR
2шт.
17
86980360
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
2шт.
20
84361749
SPACER,8.5mm ID x 18mm OD x 40mm L
Spacer
1шт.
21
87610713
BOLT,Hex, M8 x 55mm, Cl 8.8
M8 x 55 CL 8.8 DOR
1шт.
22
BN570007
STRAP
14 1/2"
2шт.
23
10319183
O-RING,13.1mm ID x 1.6mm Width
Green
1шт.
24
14450683
O-RING,10.8mm ID x 2.4mm Width
Green
1шт.
25
128485A1
O-RING,1.78mm Thk x 14mm ID, 70 Duro
A/C
2шт.
27
122554A1
CAP
High Side
1шт.
29
82007847
O-RING,1.8mm Thk x 6.7mm ID
2шт.
30
84432614
O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro
2шт.
31
122553A1
CAP
Low Side
1шт.
32
10319983
O-RING,1.6mm Thk x 16.1mm ID
16.1 x 1.6, Green
1шт.
33
14450783
O-RING,13.4mm ID x 2.4mm Width
Green
1шт.
34
14450483
O-RING,1.8mm Thk x 6.7mm ID
6.7 x 1.8, Green
1шт.
35
9706690
NUT,M8 x 1.25, Cl 8
2шт.
38
BN67726
CLAMP
Reciever-Dryer
1шт.
39
86980514
LOCK NUT,Hex, M8, Cl 8, DOR
3шт.
Выбрано товаров: 37
