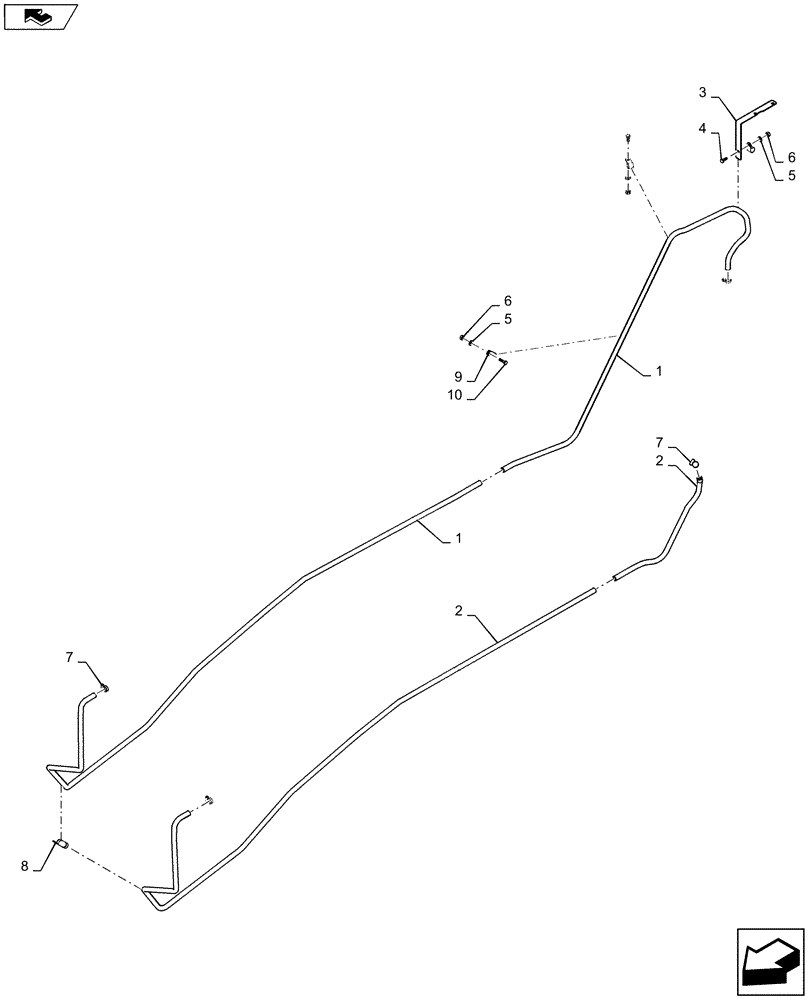

Запчасти Case IH 2240 (50.100.AC[01]) - HEATER LINES (50) - CAB CLIMATE CONTROL

1

BN312581

HEATER HOSE,0.625" ID

Bulk, White Stripe, Cut To Required Length

1шт.

2

BN312582

HOSE

0.625" ID, Bulk, Cut To Required Length

1шт.

3

84481793

SUPPORT

Hose

1шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

7

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

20 - 32mm

4шт.

8

R54363

CLAMP

Double

2шт.

9

86639000

CLAMP,23.8mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

10

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.
