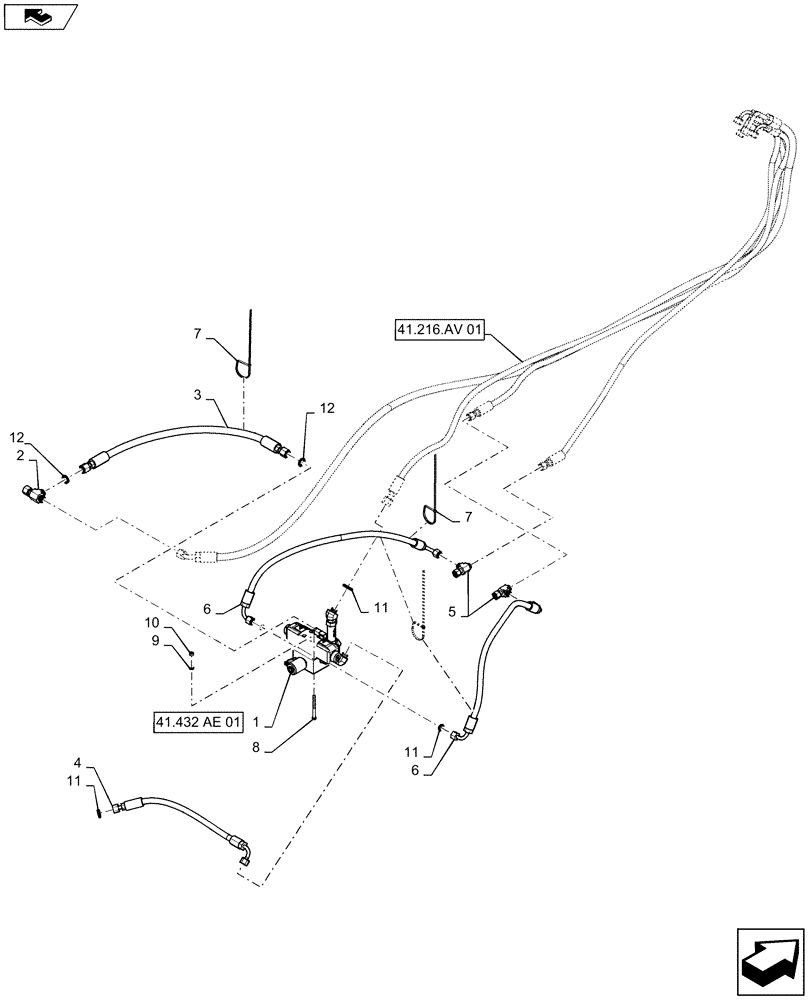

Запчасти Case IH 2240 (41.432.AC[01]) - AUTO GUIDANCE HYDRAULIC LINES (41) - STEERING

1

84385554

VALVE

Autoguidance

1шт.

See 41.432.AE 01 For Breakdown

1шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

1шт.

3

84385541

HYDRAULIC HOSE

13/16" - 16 ORFS Swivel Short Straight x 13/16" - 16 ORFS Swivel Short Straight x 1/2" ID x 30" Long, Tee To Autoguidance Valve

1шт.

4

84385542

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Long Elbow x 3/8" ID x 19-1/2" Long, Tee To Autoguidance Valve

1шт.

5

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

2шт.

6

84555251

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Swivel Medium Elbow x 3/8" ID x 31-1/2" Long, Tee To Autoguidance Valve

2шт.

7

BN570007

STRAP

Zip Tie

3шт.

8

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

9

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

10

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
