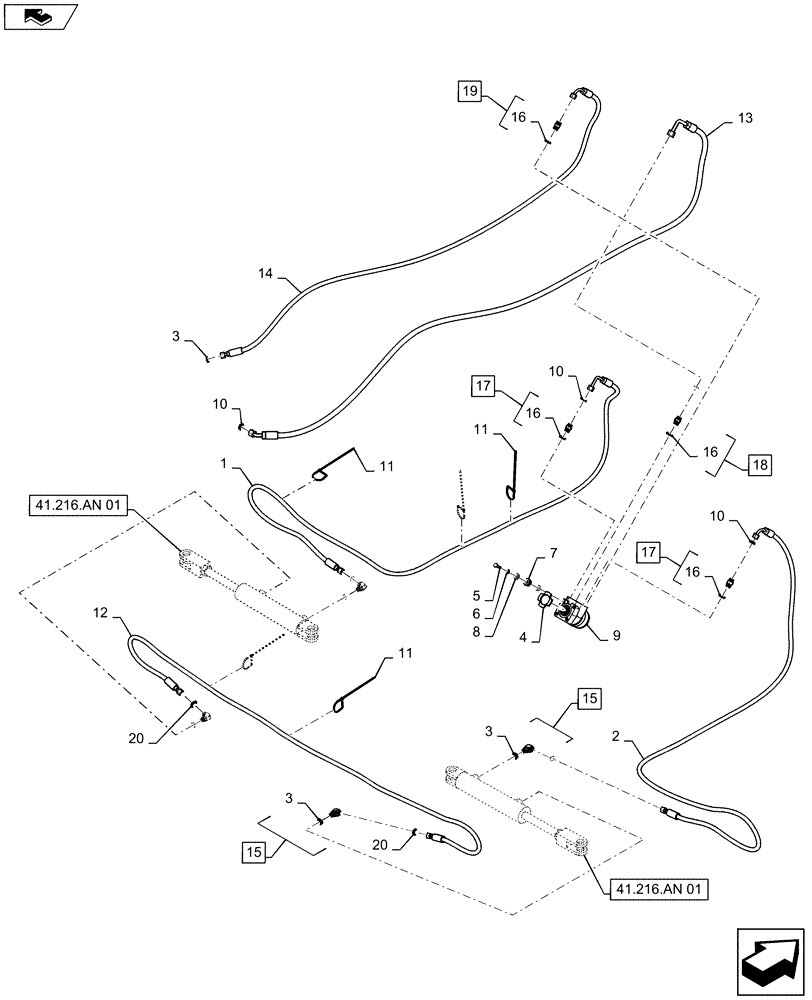

Запчасти Case IH 2240 (41.216.AV[01]) - STEERING CYLINDER HYD. LINE (41) - STEERING

1

84376406

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Elbow Long x 3/8" ID x 128" Long, Left Hand Cylinder Base To Orbital

1шт.

2

84376404

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Elbow Long x 3/8" ID x 127" Long, Right Hand Cylinder Base To Orbital

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

4

81873344

RUBBER INSULATOR

Orbital Isolator

1шт.

5

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

6

329677A1

RETAINER,9.09mm ID x 19.87mm OD x 0.38mm Thk

Bolt

4шт.

7

82009429

ISOLATOR

Steering Column

7шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

9

47448442

CONTROL VALVE

Orbital

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

11

BN570007

STRAP

14 1/2"

12шт.

12

84377140

HYDRAULIC HOSE

11/16-16 Female ORFS Swivel Short x 11/16-16 Female ORFS Swivel Short x 3/8" ID x 113" Long, Cylinder To Cylinder

1шт.

13

84376403

HYDRAULIC HOSE

13/16-16 Female ORFS Swivel 45 Degree Short x 13/16-16 Female ORFS Swivel Elbow Long x 1/2" ID x 117" Long, Steel Lines To Orbital

1шт.

14

BN307843

HOSE

11/16-16 Female ORFS Swivel Elbow x 11/16-16 Female ORFS Swivel x 3/8" ID x 97" Long, Steel Lines To Orbital

1шт.

15

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 3

4шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

17

BN302647

FITTING

11/16-16 ORFS x 3/4-16 ORB, Incl 16

2шт.

18

BN302650

FITTING

13/16-16 ORFS x 3/4-16 ORB, Incl 16

1шт.

19

BN311751

CHECK VALVE

Incl 16

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
