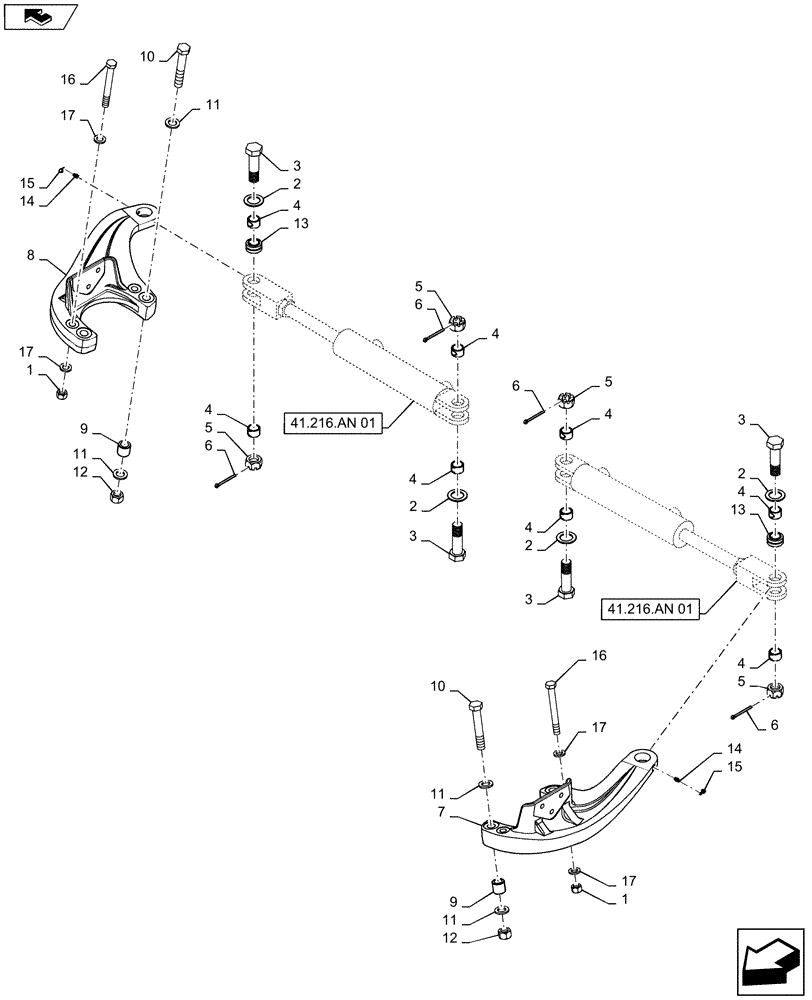

Запчасти Case IH 2240 (41.106.AB[01]) - STEERING ARM (41) - STEERING

1

87344007

LOCK NUT

M16, DOR

4шт.

2

87529131

WASHER,1.31" ID x 2" OD x 0.11" Thk

1.312 x 2 x .109 IN, DOR

4шт.

3

84600698

BOLT

Cylinder

4шт.

4

87269214

BUSHING,25.4mm ID x 32.38mm OD x 19.05mm L

Spring

8шт.

5

87343900

SLOTTED NUT

DOR

4шт.

6

300420

COTTER PIN,M5 x 63

4шт.

7

47434811

ARM

Right Hand

1шт.

8

47434815

ARM

Left Hand

1шт.

9

84310949

SPACER

Arm

4шт.

10

87310604

BOLT,Hex, M20 x 120mm, Cl 10.9

M20 x 120, CL10.9, DOR

4шт.

11

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4MM, DOR

8шт.

12

87024336

NUT,M20 x 2.5, Cl 10

4шт.

13

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self Aigning

2шт.

14

BN302051

NIPPLE, LUBE,M8 x 1, Straight

2шт.

15

BN69951

CAP

Grease Fitting

2шт.

16

87341861

BOLT,Hex, M16 x 140mm, Cl 10.9

M16 x 140, CL10.9, DOR

4шт.

17

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.
