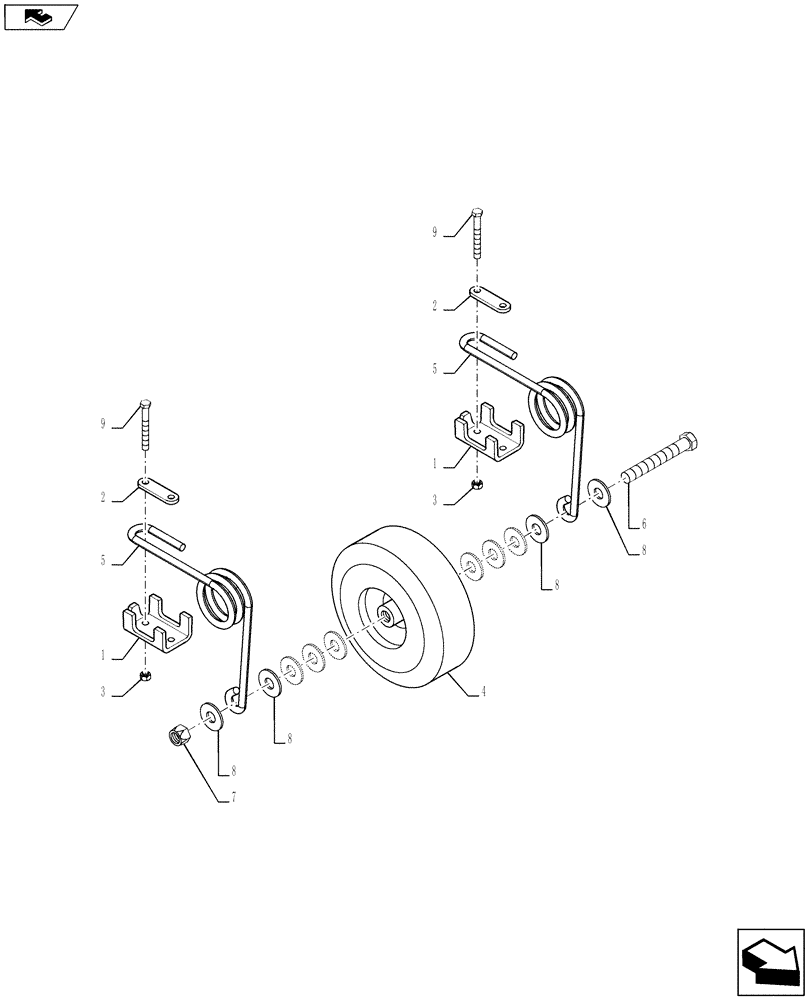

Запчасти Case IH 2240 (39.130.AH[01]) - AUTOBOOM WHEELS (39) - FRAMES AND BALLASTING

1

87504402

CLIP

Single Tine/Spring

4шт.

2

BN308039

PLATE

Backer

4шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

4

87502279

TYRE/TIRE

Assembly, 4.10/3.50 x 4, 2 Ply

2шт.

5

84411563

SPRING

Torsion, AutoBoom Wheel Retainer

4шт.

6

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

7

9626598

NUT,3/4"-10, GB

2шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

20шт.

9

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.
