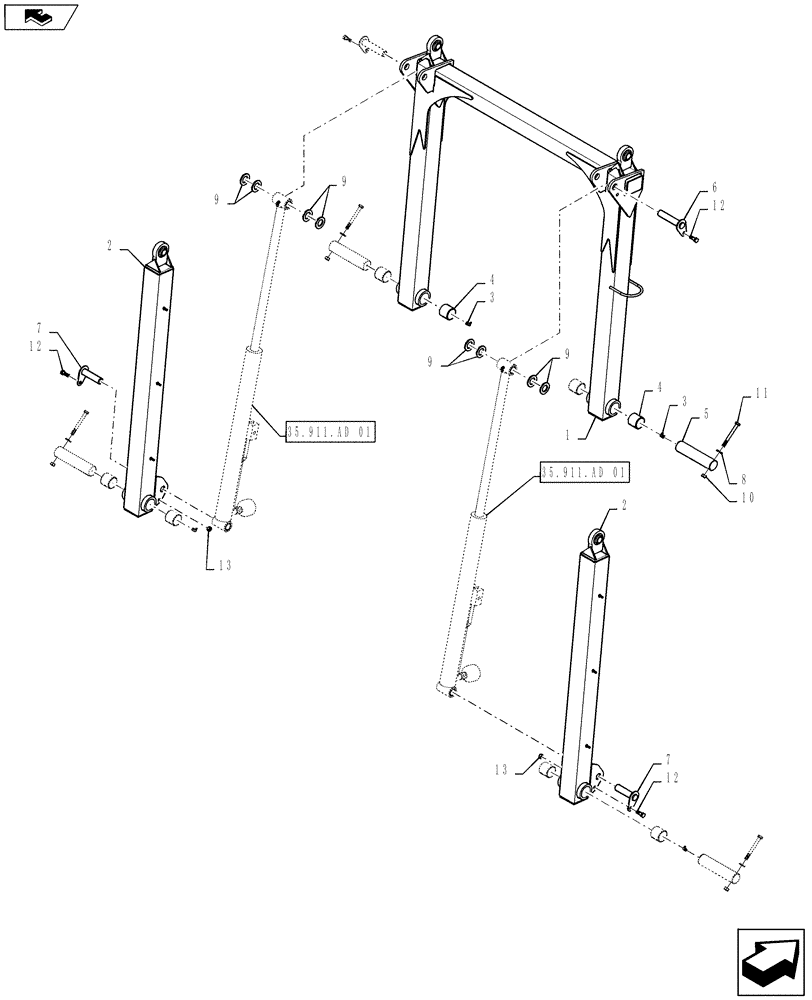

Запчасти Case IH 2240 (39.130.AG[01]) - BOOM LIFT LINK, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47365362

HITCH

Upper Link

1шт.

2

47365358

HITCH

Lower Link

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

4шт.

4

BN321132

BUSHING,50.8mm ID x 57.96mm OD x 50.8mm L

Spring

8шт.

5

343354A1

PIN

Boom Hitch, 2"

4шт.

6

84397664

HITCH PIN

Linkages

2шт.

7

87271475

PIN

Parallel Linkage, Boom End

2шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

8шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

87341848

BOLT,Hex, M10 x 100mm, Cl 10.9

Hex, M10 - 1.5 x 100mm, Class10.9, DOR

4шт.

12

87342014

BOLT,M12 x 1.75 x 35mm, Class 10.9

Hex, M12 - 1.75 x 35mm, Class10.9, DOR

4шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

Hex, M12 - 1.75, Class 10.9, DOR

4шт.
