Запчасти Case IH 2240 (39.130.AE[01]) - BOOM BREAKAWAY, 80/90 BOOM (39) - FRAMES AND BALLASTING

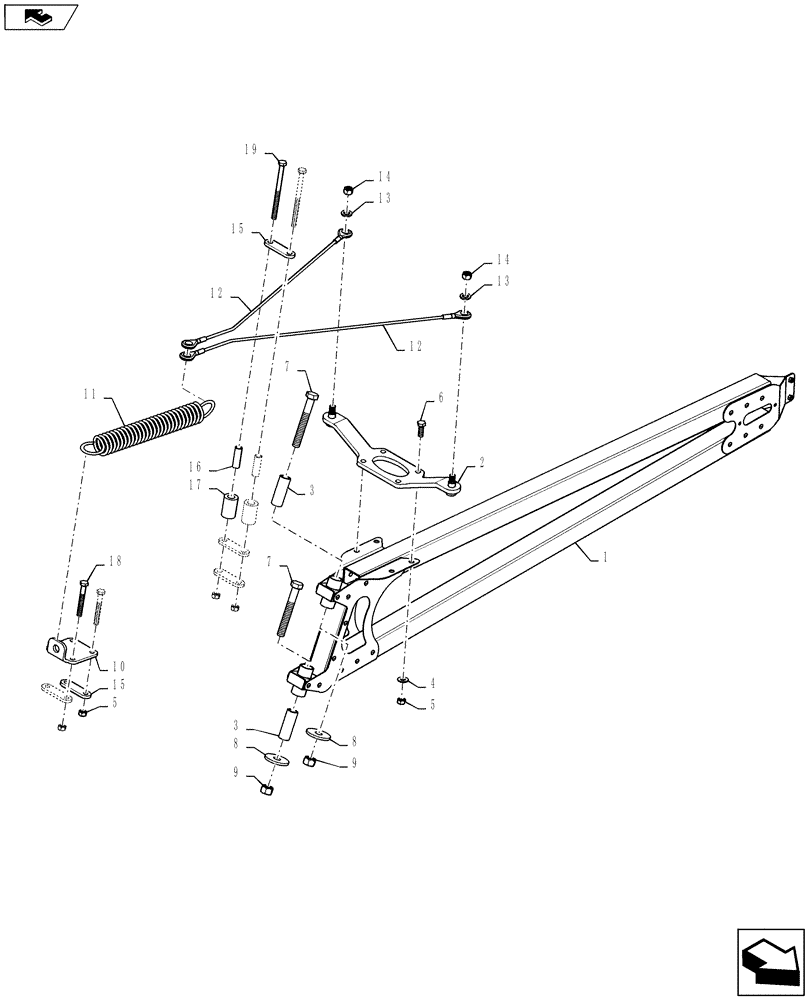

Схема запчастей Case IH 2240 - (39.130.AE[01]) - BOOM BREAKAWAY, 80/90 BOOM (39) - FRAMES AND BALLASTING
12
19
9
13
15
4
8
3
12
8
home
7
14
2
18
3
15
10
13
14
17
1
5
9
6
7
11
5
16

Артикул

Название

Примечание

Количество

1

47368755

BOOM

Breakaway, Red

1шт.

2

47643945

ARM

Breakaway Support

1шт.

3

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

25 OD x 16 ID x 68 Long

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

86980450

BOLT,Hex, M16 - 2 x 120mm, Cl 8.8, DOR

2шт.

8

87529305

WASHER,17.5mm ID x 56mm OD x 5mm Thk

17.5 x 56 x 5 mm, CST, DOR

2шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

10

BN311733

ANCHOR

Breakaway

1шт.

11

BN305410

SPRING

Breakaway, 1.67" X 0.283" X 12"

1шт.

12

87271165

CABLE,713mm L

Breakaway, 28"

1шт.

13

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

14

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

15

BN308039

PLATE

Spacer

5шт.

16

47401020

BUSHING

Breakaway, 5/8" OD x 2" Long

2шт.

17

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

2шт.

18

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

19

86980414

BOLT,Hex, M10 - 1.5 x 140mm, Cl 8.8, DOR

2шт.

20

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

21

47636886

BUSHING

2шт.

Выбрано товаров: 21
