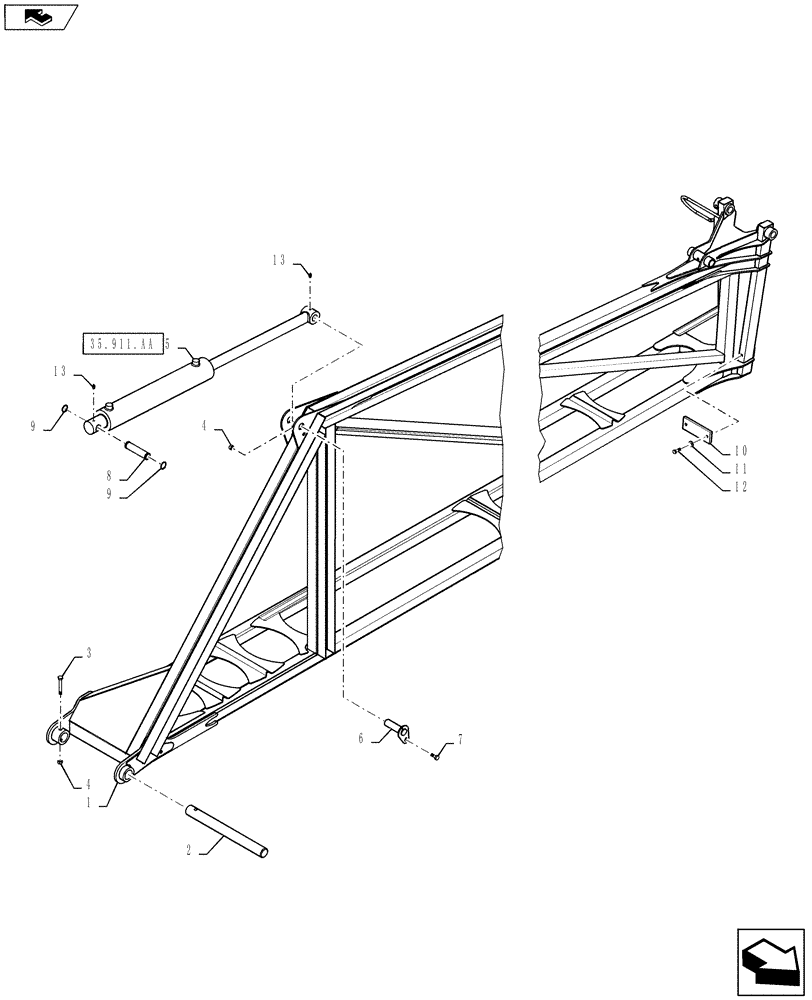

Запчасти Case IH 2240 (39.130.AB[01]) - LH INNER BOOM, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

47376429

BOOM

Inner, LH, Red

1шт.

2

84324665

PIN,38.1mm OD x 400mm L

Boom Pivot

1шт.

3

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

Hex, M10 - 1.5 x 70mm, Class 8.8, DOR

1шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

84277742

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Boom Level, 3" x 16" x 1-1/2"

1шт.

See Figure 35.911.AA For Service Parts

1шт.

6

BN307223

PIN,25.4mm OD x 85.85mm L

Locking, 85mm long

1шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

87420117

PIN

1" x 3-7/8" Long

1шт.

9

87348940

SNAP RING

0.925" ID

2шт.

10

84319109

BUMPER

Rubber

1шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

87563868

FITTING,M8 x 1.17mm

Lube, M8 - 1

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.
