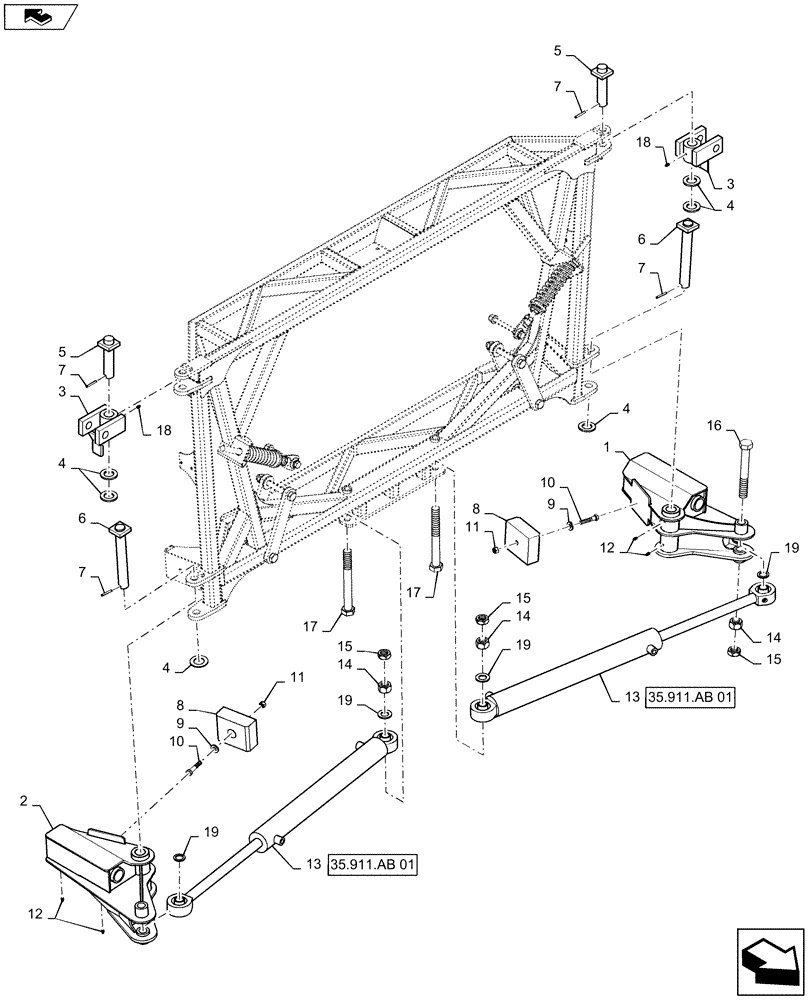

Запчасти Case IH 2240 (39.130.AA[03]) - BOOM PIVOT, 80/90 BOOM (39) - FRAMES AND BALLASTING

1

84322181

PIVOT

Boom, Main, LH, Red

1шт.

2

84322183

PIVOT

Boom, Main, RH, Red

1шт.

3

47429978

HINGE

Upper Boom, Red

2шт.

4

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

6шт.

5

BN300279

PIN

1-1/4" OD x 4-1/2" Long

2шт.

6

84324690

PIN

1-1/4" x 9" Long

2шт.

7

BN148976

PIN, ROLL

1/4" OD x 1-3/4" Long

4шт.

8

87266670

STOP

Bumper, Boom

2шт.

9

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

10

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

13

87266234

CYLINDER,Double Acting, 31.75mm Rod, 549.4mm Stroke

Inner Boom Fold, Complete

2шт.

See Figure 35.911.AB(01) For Service Parts

1шт.

14

87343673

NUT

Hex, 1" - 8, Grade 8, DOR

4шт.

15

87343879

JAM NUT

Hex, Jam, 1" - 8, Grade 5, DOR

4шт.

16

87342866

BOLT

Hex, 1" - 8 x 7-1/2", Grade 5, DOR

2шт.

17

47410110

BOLT

Hex, 1" - 8 x 9", Grade 5, DOR

2шт.

18

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

19

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

6шт.
