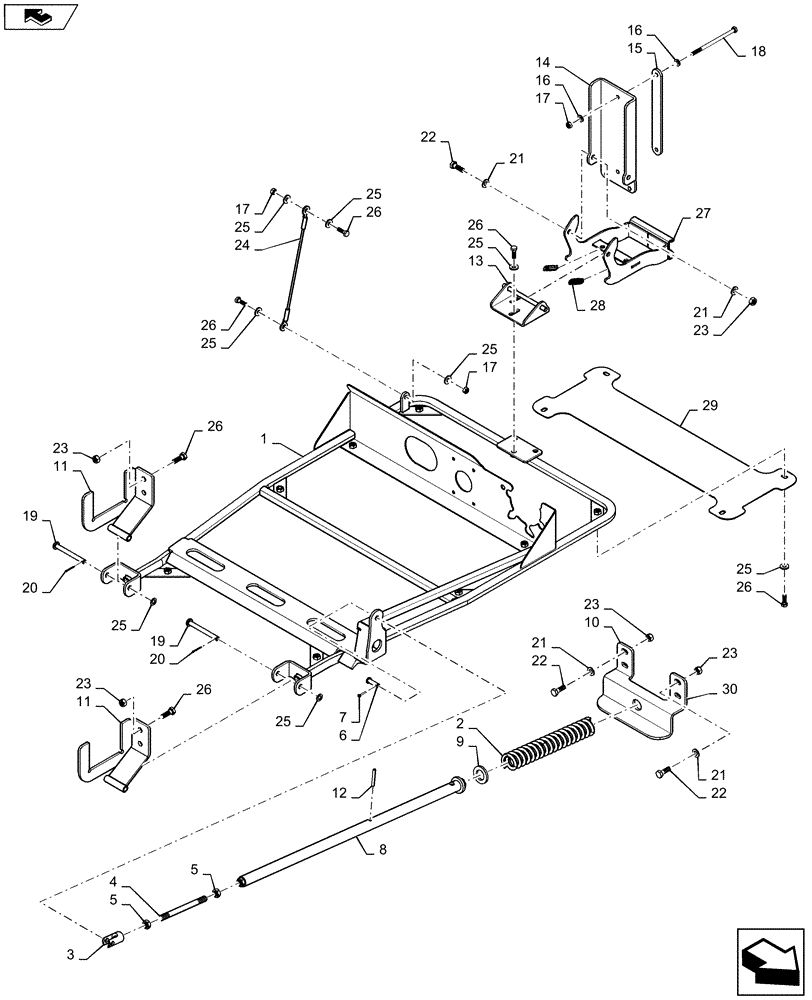

Запчасти Case IH 2240 (39.100.AC[01]) - PRODUCT FILL STATION MOUNTING (39) - FRAMES AND BALLASTING

1

47584943

FRAME

Operation Station

1шт.

2

BN27328

SPRING

Compression, 1.75" OD x11"

1шт.

3

BN21982

CLEVIS,1/2" - 20

1" Diameter, 1/2"-20 Thread

1шт.

4

47384721

ROD

Threaded, 1-2" - 20 x 152", DOR

1шт.

5

BN50075

NUT

1/2"-20, SST

2шт.

6

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

7

80756

COTTER PIN,1/8" x 3/4"

1шт.

8

84375272

GUIDE

Spring

1шт.

9

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

1шт.

10

47479067

STOP

Spring Guide

1шт.

11

47461348

HINGE

Operation Station

2шт.

12

13942970

ROLL PIN,M6 x 45, Coiled

1шт.

13

47461366

ANCHOR

Slam Lock

1шт.

14

47461358

MOUNT

Latch

1шт.

15

84375283

PLATE

Latch

1шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

18

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

19

87661862

PIN,10mm OD x 95mm L

10 x 95mm, Clevis

2шт.

20

733-2520

COTTER PIN,M2.5 x 20

2шт.

21

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

10.5 X 18 X 1.6 MM, CST, DOR

14шт.

22

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

23

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

24

F64526

CABLE

Door

1шт.

25

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10.5 X 18 X 1.6 MM, CST, DOR

11шт.

26

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Pull

9шт.

27

47461360

LATCH

Operation Station

1шт.

28

BN311889

SPRING

SST

2шт.

29

47479080

PANEL

Decal

1шт.

30

BN319152

RUBBER BUMPER

1" OD

1шт.
