(C-59[A]) - LIQUID CHEMICAL FERTILIZERS, SPRAY BOOM CONVERSION PACKAGE

Запчасти Case IH LIQUID (C-59[A]) - LIQUID CHEMICAL FERTILIZERS, SPRAY BOOM CONVERSION PACKAGE

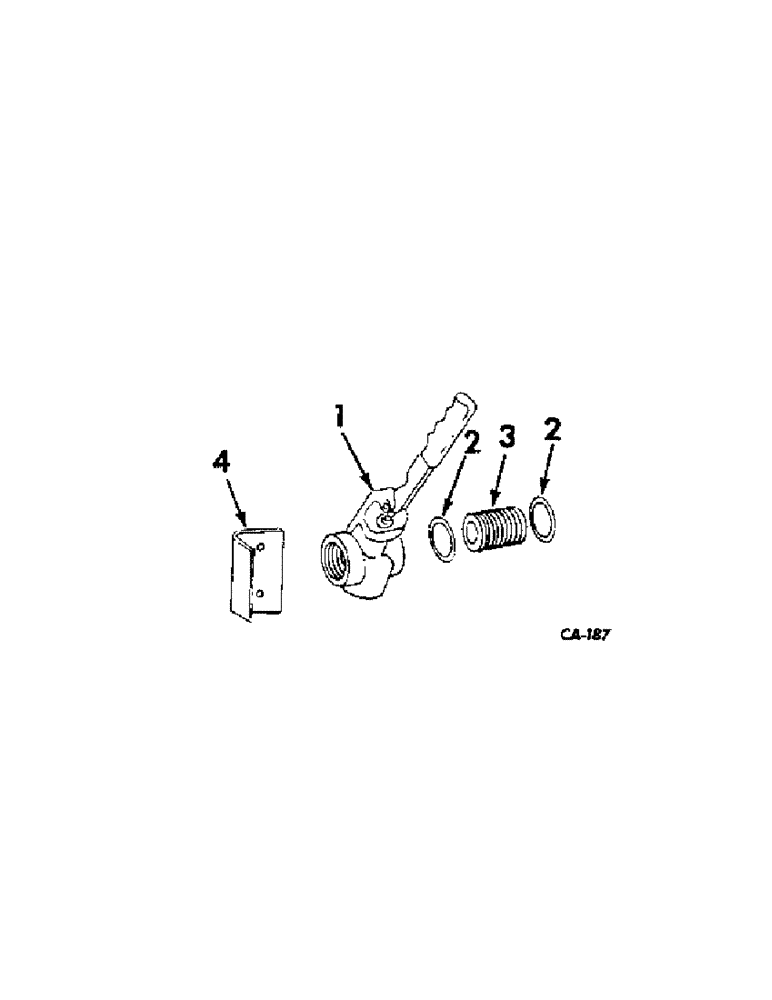

Схема запчастей Case IH LIQUID - (C-59[A]) - LIQUID CHEMICAL FERTILIZERS, SPRAY BOOM CONVERSION PACKAGE
2
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

490410R91

VALVE, control

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

3/8-16 x 1-1/8 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

493615R1

GASKET, connecting nipple

2шт.

3

493614R1

NIPPLE, connecting

1шт.

4

493025R1

BRACKET, attaching boom

4шт.
