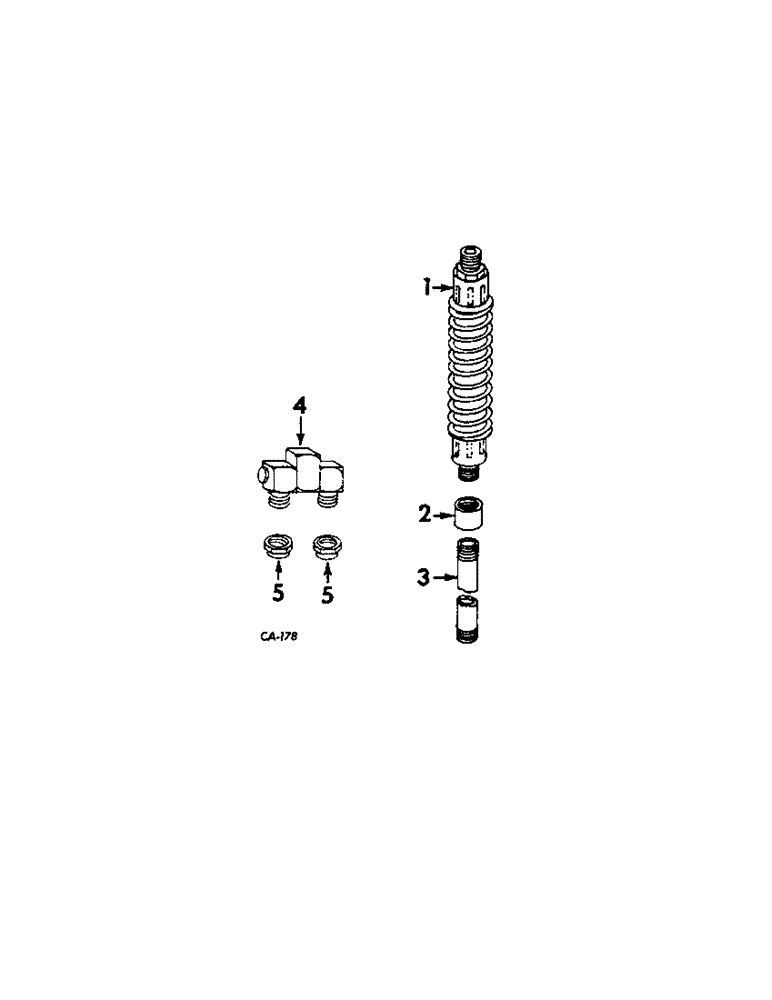

Запчасти Case IH LIQUID (C-57[A]) - LIQUID CHEMICAL FERTILIZERS, BOOM DROP AND NOZZLE ATTACHMENTS

1

673824R91

HOSE

DROP ASSY, boom, with 11 inch and 18 inch drops, 7 used on 6 row, 9 used on 8 row and 13 used on 12 row

1шт.

2

192087

COUPLING, 1/4 zinc pipe, with 18 inch drops, 7 used on 6 row, 9 used on 8 row and 13 used on 12 row 1/4" NPT, Fem

1шт.

3

219626

ROLLER

NIPPLE 1/4 x 7 C-Z pipe, with 18 inch drops, 7 used on 6 row, 9 used on 8 row and 13 used on 12 row

1шт.

4

673270R1

NOZZLE, double swivel, with 11 inch and 18 inch drops, 5 used on 6 row, 7 used on 8 row and 11 used on 12 row

1шт.

4

673269R1

NOZZLE, single swivel, with 11 inch and 18 inch drops, 2 used on 6, 8 and 12 row

1шт.

5

671540R1

CAP, nozzle brass, with 11 inch and 18 inch drops, 12 used on 6 row, 16 used on 8 row and 24 used on 12 row

1шт.
