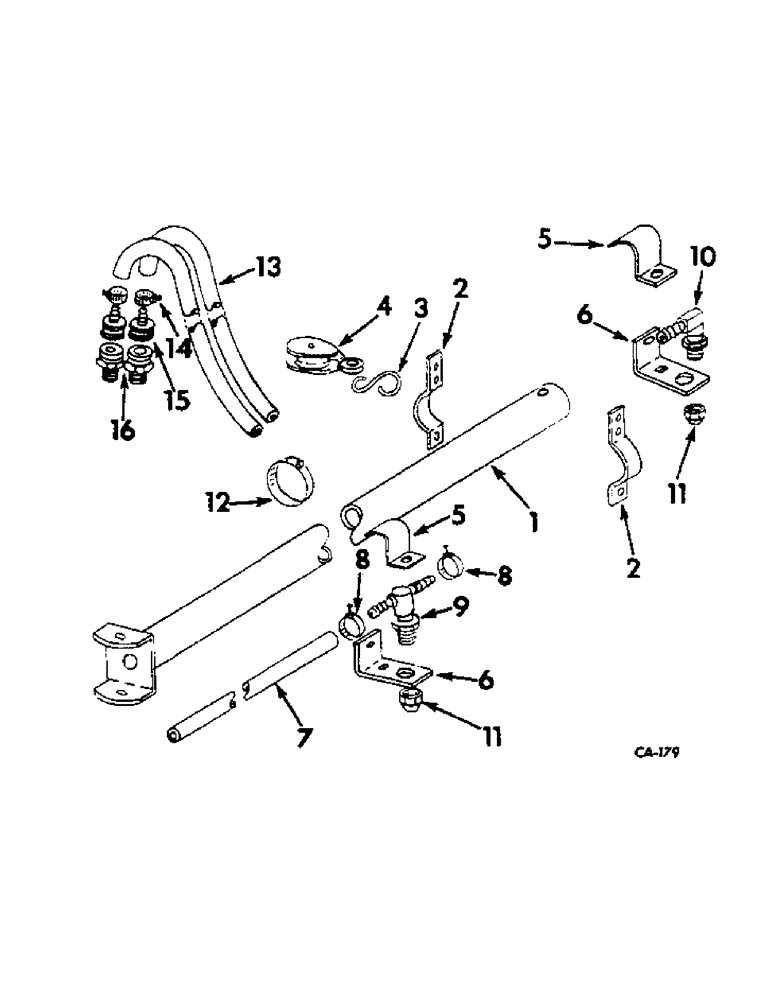

Запчасти Case IH LIQUID (C-56) - LIQUID CHEMICAL FERTILIZERS, BOOMS, SIX AND EIGHT ROW

1

493033R1

BOOM ASSY, spray 6 row

2шт.

1

493030R1

BOOM ASSY, spray 8 row

2шт.

21993R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3-1/2 std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , Boom clevis 3/16" x 1"

2шт.

2

493048R1

STRAP, lift

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

520841R1

S-HOOK

2шт.

4

514938R91

PULLEY

2шт.

5

671543R1

CLAMP

nozzle boom, 13 for 6 row and 17 for 8 row

1шт.

6

671544R1

SUPPORT

nozzle

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nd crg, 13 for 6 row and 17 for 8 row

1шт.

7

HOSE, nozzle connector, 3/8 x 19-13/64, order from 53 ft. roll marked, 526601R1, 11 for 6 row and 15 for 8 row

1шт.

8

671613R1

CLAMP, 3/8 hose, 24 for 6 row and 32 for 8 row

1шт.

9

671539R1

TEE

CONNECTOR, double hose, 11 for 6 row and 15 for 8 row

1шт.

10

671538R1

CONNECTOR, single hose, 2 for 6 row and 8 row

1шт.

11

486178R1

CAP, tee jet, 13 for 6 row and 17 for 8 row

1шт.

12

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, hose, 2 for 6 row and 8 row

1шт.

13

HOSE, valve to boom, use 96 in. of 3/8 hose from 50 ft. roll marked 526601R1

2шт.

14

671613R1

CLAMP, 3/8 hose

2шт.

15

493040R1

COUPLING, hose 3/4 female

2шт.

475222R1

WASHER, hose coupling

2шт.

16

490411R1

ADAPTER, 1/2 NPT x 3/4 garden hose

2шт.
