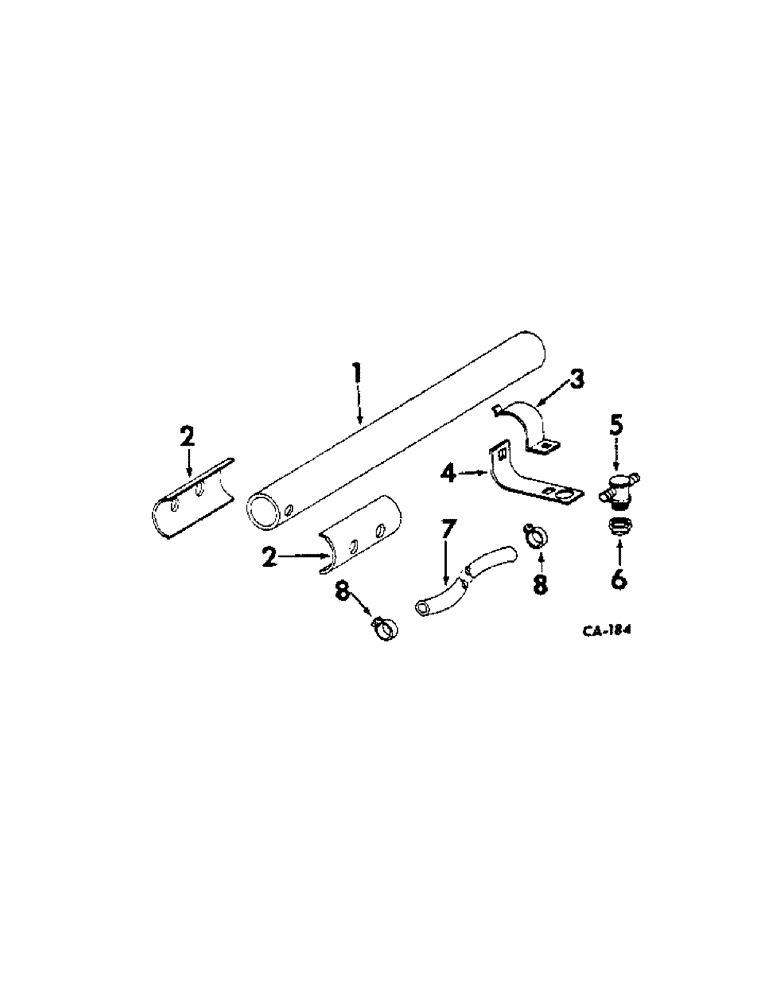

Запчасти Case IH LIQUID (C-56[A]) - LIQUID CHEMICAL FERTILIZERS, BOOM EXTENSION ATTACHMENT, 4 ROW TO EXTEND 8 ROW BOOM TO 12 ROW

1

493044R1

BOOM, extension

2шт.

2

671571R1

CONNECTOR, boom

4шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

671543R1

CLAMP

nozzle boom

8шт.

4

671544R1

SUPPORT

nozzle

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

671539R1

TEE

CONNECTOR, double hose

8шт.

6

486178R1

CAP, tee jet

8шт.

7

671531R1

HOSE, nozzle connector

8шт.

8

671613R1

CLAMP, 3/8 hose

16шт.
