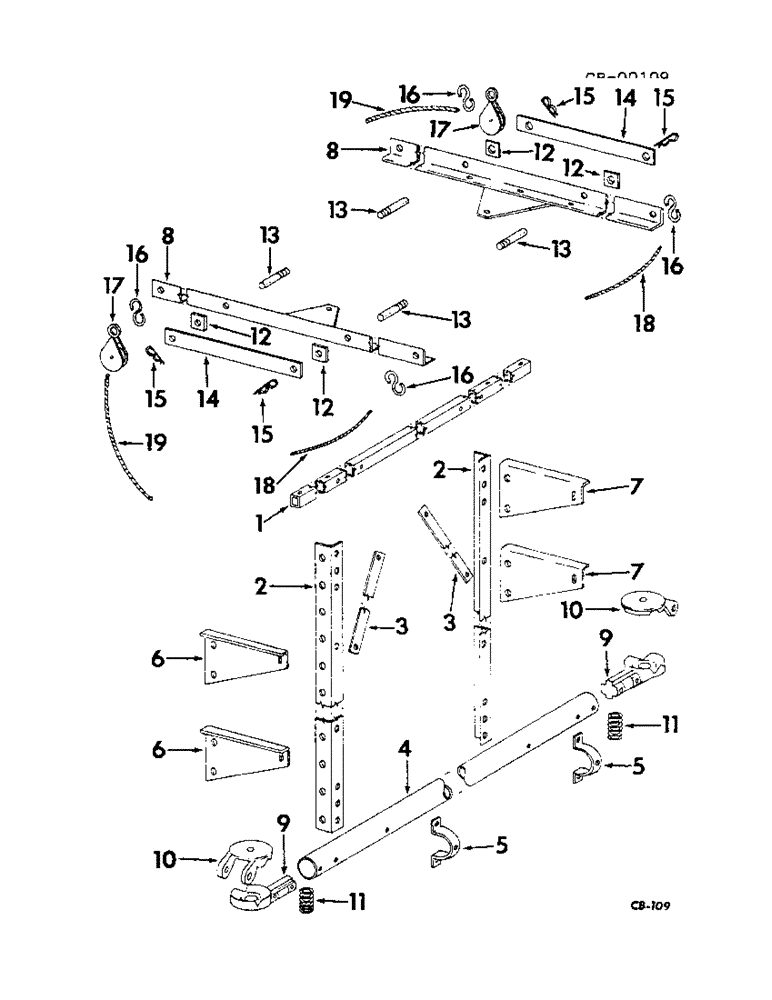

Запчасти Case IH LIQUID (C-54) - LIQUID CHEMICAL FERTILIZERS, BASIC BOOM FRAME

1

493800R1

SUPPORT, boom horizontal

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

493036R1

SUPPORT, boom, vertical

2шт.

3

493798R1

BRACE

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

493038R1

PIPE, support boom

1шт.

5

493041R1

STRAP, support boom

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

493042R1

PLATE, support arm LH

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

493043R1

PLATE, support arm RH

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 and hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

493795R1

BAR ASSY, cross

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

4шт.

22264R1

WASHER

13/32 x 1 x 7 ga

2шт.

102382

WASHER

3/8 C-Z med lock

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

9

493046R1

BRACKET, inner boom pivot

2шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

493037R1

BRACKET, boom pivot

2шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

SCREW, 1/2-13 x 7-1/2 znd hex-hd cap

2шт.

PO10535

WASHER

17/32 x 11-/4 x 11 ga

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

11

PO3

SPRING

compression

2шт.

12

471111R1

PAD

SPACER, rubber

24шт.

13

493887R1

STUD, locking transport

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex jam

4шт.

14

493888R1

STRAP, locking transport

2шт.

137185R1

PIN, 1/8 x 1 cot

4шт.

138374R1

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

8шт.

15

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

4шт.

16

520841R1

S-HOOK

4шт.

17

514938R91

PULLEY

2шт.

18

ROPE, stabilizer, purchase locally, 1/4 diameter x 13 ft. long

2шт.

19

ROPE, purchase locally, 1/4 diameter x 30 ft. long

2шт.
