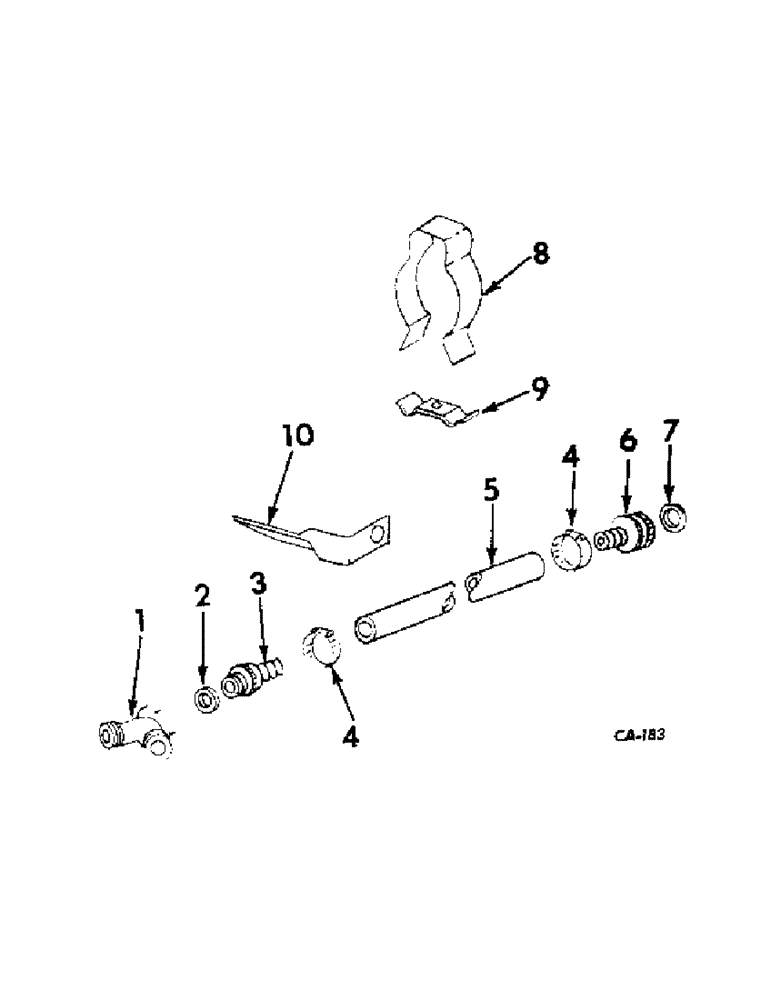

Запчасти Case IH LIQUID (C-59) - LIQUID CHEMICAL FERTILIZERS, DUPLEX PLANTER HOSE ADAPTING ATTACHMENT

1

478012R1

COUPLING, siamese 3/4

1шт.

2

478722R1

WASHER, siamese coupling

1шт.

3

478011R1

COUPLING, 3/4 on 3/4 hose male

1шт.

4

526609R91

CLAMP, 3/4

2шт.

5

HOSE, pressure, use 115 in. of 3/4 in. hose from a 25 ft. roll marked 526603R1

1шт.

6

478010R1

COUPLING, 3/4 female hose

1шт.

7

475222R1

WASHER, pump hose coupling

1шт.

8

487533R1

CLAMP, hose

4шт.

9

515030R1

CLAMP

hose

1шт.

10

486694R1

SUPPORT

CLIP, hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 nd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
