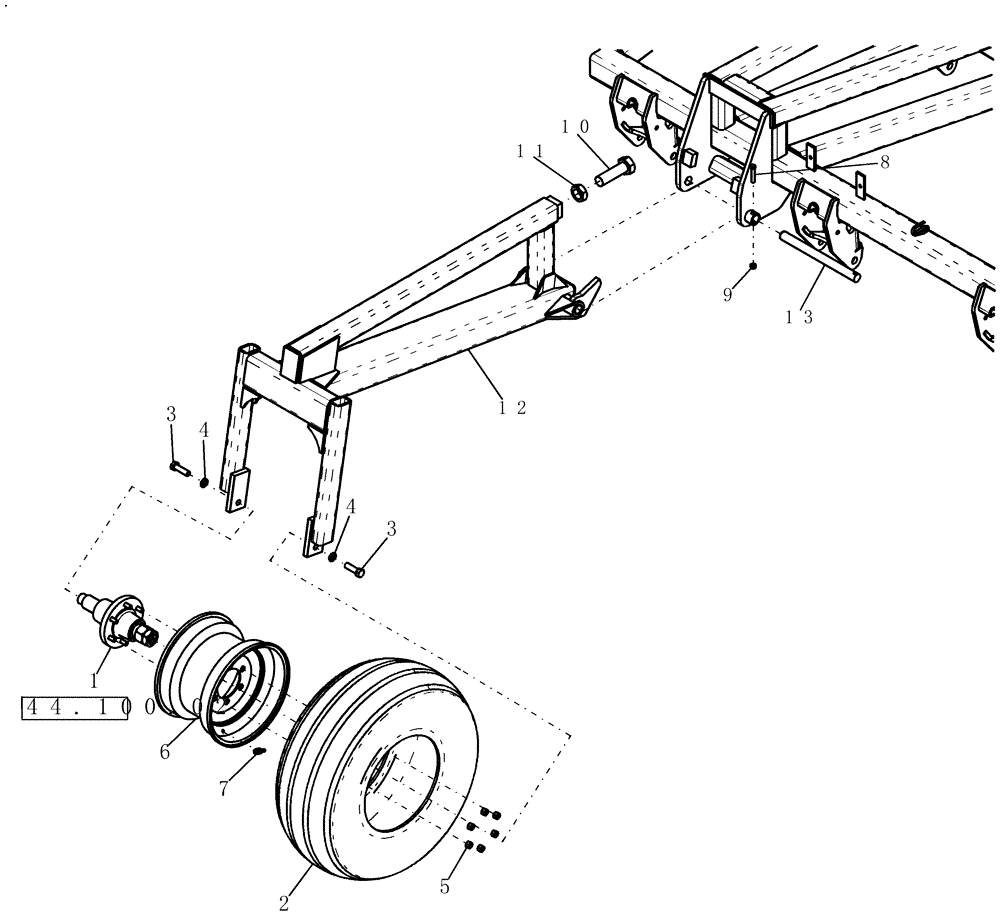

Запчасти Case IH 800 (39.100.30) - 10 WING FRAME TRAILING WHEEL (39) - FRAMES AND BALLASTING

1

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.

Refer to 44.100.02

1шт.

2

3474

TYRE/TIRE

11l x 15 fi - d load range

1шт.

Base and Dual option

1шт.

2

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

1шт.

Hi Float option

1шт.

3

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

5

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

6

87505456

RIM

15" x 8" - 6 hole

1шт.

Base and Dual option

1шт.

6

87505450

RIM

15X10LB 6 hole +1 1/8" offset

1шт.

Hi Float option

1шт.

7

196033

VALVE STEM

tr/415

1шт.

Base and Dual option

1шт.

7

1018564

VALVE

tire stem

1шт.

Hi Float option

1шт.

8

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

9

280980

NUT,7/16"-14, GC

1шт.

10

87698775

BOLT

Hex, 1 1/2"-6 x 5", G5, Full Thd

1шт.

11

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

12

87737792

FRAME

Trail Wheel, 10'

1шт.

13

87742880

PIN

31.75 mm x 358 mm ul Chrome

1шт.
