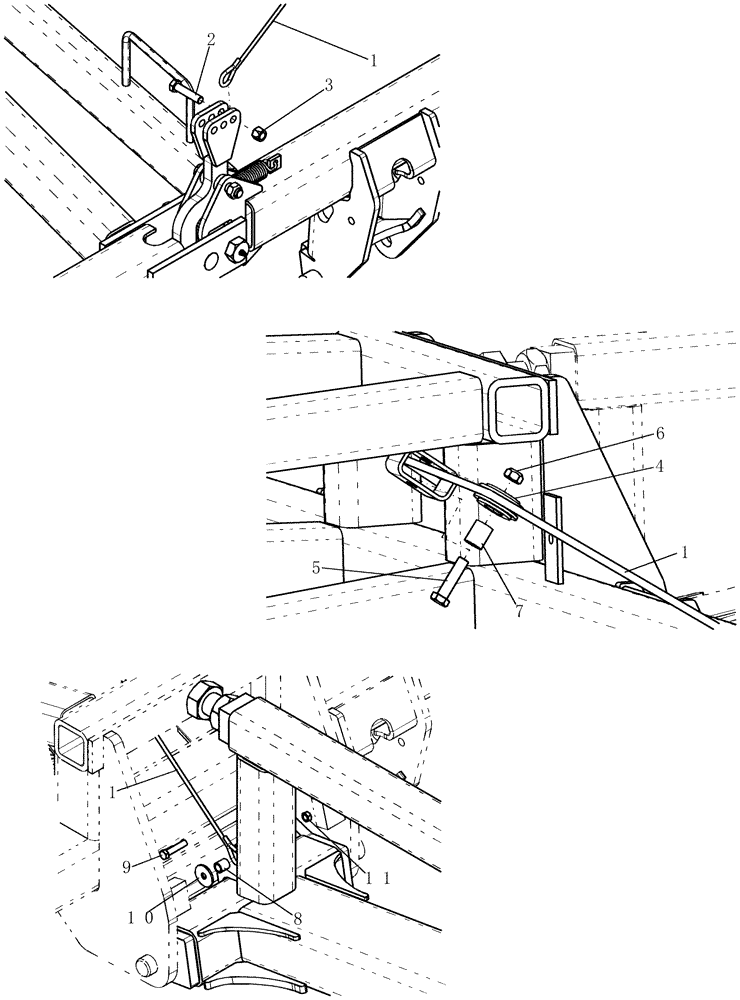

Запчасти Case IH 800 (39.100.18) - FOLDAWAY FRAME LATCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

87470092

CABLE

4.76 mm x 2049 mm

1шт.

2

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

84133767

CABLE PULLEY

Latch

1шт.

5

1514

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

84133855

TUBE SPACER

1шт.

8

87658746

TUBE SPACER

1шт.

9

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

10

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

1шт.

11

88902

NUT,3/8"-16

1шт.
