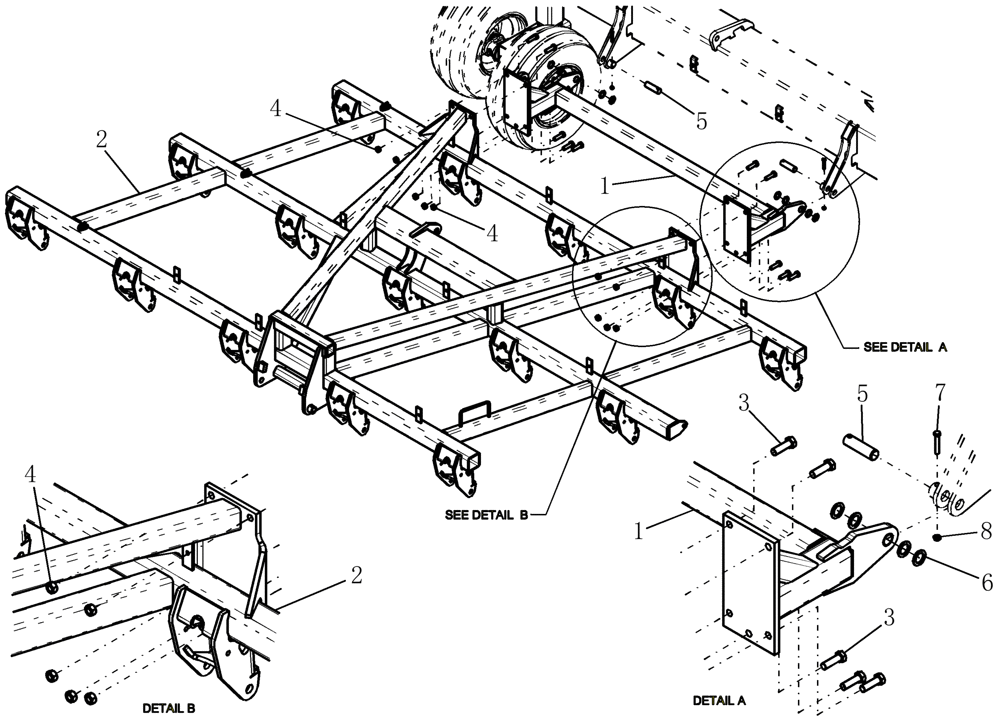

Запчасти Case IH 800 (39.100.16) - OUTER TOOLBAR FRAME (60 AND 70) (39) - FRAMES AND BALLASTING

1

87682267

FRAME

15' Pivot Bar LH

1шт.

1

87711691

FRAME

15' Pivot Bar RH

1шт.

1

87645765

FRAME

10' Wing Drawbar LH

1шт.

1

87711688

FRAME

10' Wing Drawbar RH

1шт.

2

87682211

FRAME

15' Wing, 12" Spacing, Outer LH

1шт.

2

87682259

FRAME

15' Wing, 12" Spacing, Outer RH

1шт.

2

87624805

FRAME

15' Wing, 10" spacing, Outer LH

1шт.

2

87624807

FRAME

15' Wing, 10" Spacing, Outer RH

1шт.

2

87624799

FRAME

10' Wing, 12" Spacing, LH

1шт.

2

87624803

FRAME

10' Wing, 12" Spacing, RH

1шт.

2

87624797

FRAME

10' wing, 10" space, LH

1шт.

2

87624801

FRAME

10' wing, 10" space, RH

1шт.

3

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

20шт.

4

86754

NUT,3/4"-10, GB

20шт.

5

87419929

PIN

31.75 mm x 94 mm ul chrome

4шт.

6

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

16шт.

7

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

4шт.

8

280980

NUT,7/16"-14, GC

4шт.
