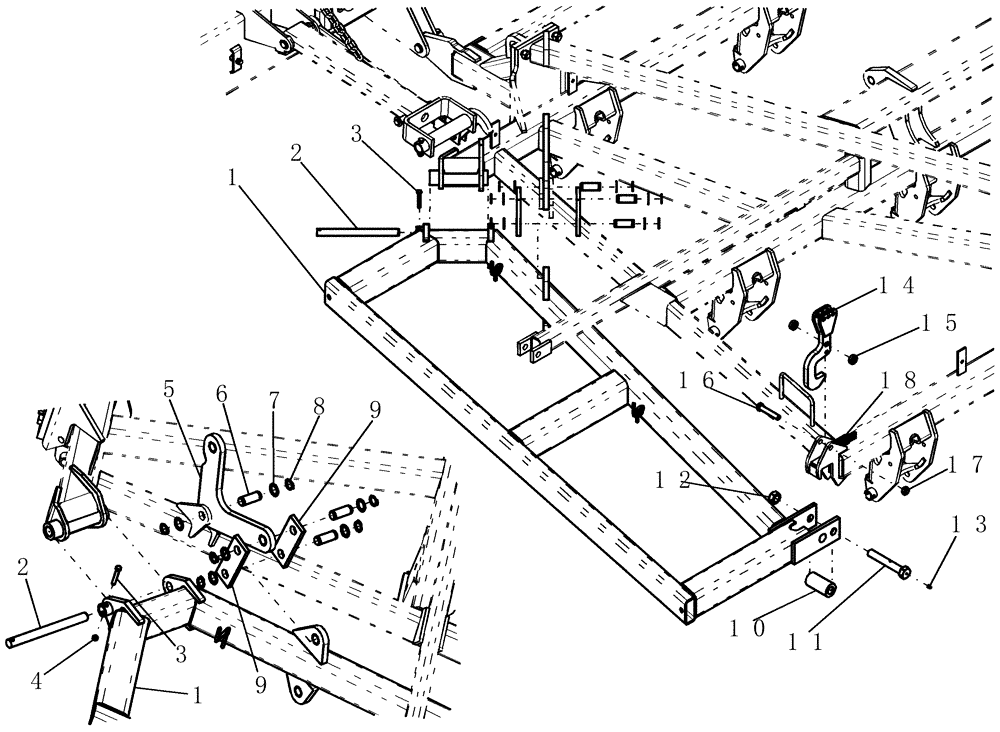

Запчасти Case IH 800 (39.100.14) - INNER WING FOLDAWAY FRAME (60 AND 70) (39) - FRAMES AND BALLASTING

1

87624821

FRAME

Fold Away

2шт.

2

87625084

PIN

25.4 mm x 272 mm ul Chrome

2шт.

3

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

4

88902

NUT,3/8"-16

2шт.

5

87714225

LEVER

Plate

2шт.

6

87714230

PIN

25.4 mm x 52 mm ul

6шт.

7

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

12шт.

8

87019495

SNAP RING,#98, Ext

12шт.

9

87714224

PIVOT PLATE

Strap

4шт.

10

87470093

ROLLER

Fold Away Frame

2шт.

11

87624826

BOLT

Hex, 1"-8 x 6 1/2", Greaseable

2шт.

12

280286

NUT,1"-8, GB

2шт.

13

87414

LUBE NIPPLE,1/4" - 28

2шт.

14

87716504

LATCH HOOK

Frame

2шт.

15

87470085

SPACER

Tube

4шт.

16

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

17

85700693

NUT,5/8" - 11, Gr C

2шт.

18

87756272

SPRING

Extension, .177 Wire x 1.25" od x 4.79" Long

2шт.
