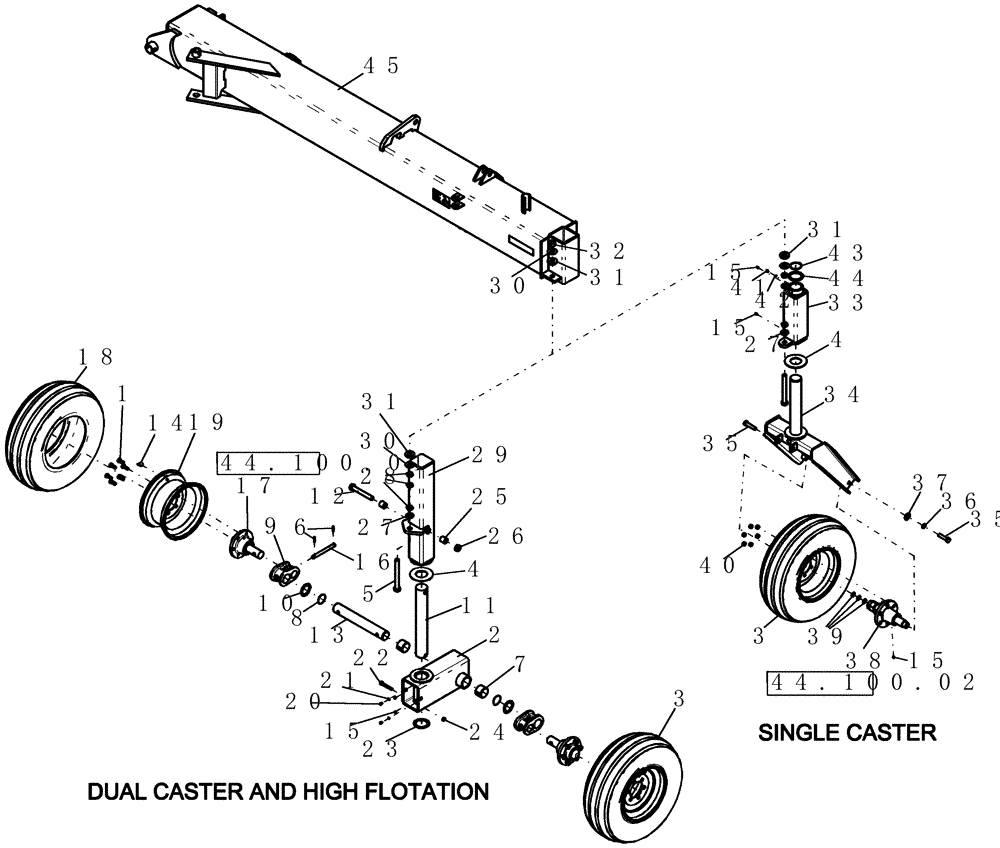

Запчасти Case IH 800 (39.100.11) - BEAM, OUTER WING CASTER AND TIRES (39) - FRAMES AND BALLASTING

1

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

2

87503852

HOUSING

walking beam

1шт.

3

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

1шт.

Base option

1шт.

Includes 3474 and 87505456

1шт.

3

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

2шт.

Includes 3474 and 87505456

1шт.

Dual option

1шт.

3

87708057

TYRE/TIRE

15" x 10" 6h with 12.5l-15fi d

2шт.

Hi Float option

1шт.

Includes 1864 and 87505450

1шт.

4

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

5

84224911

BOLT

1"-8 x 9", G8, Full Thrd

1шт.

6

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

7

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

8

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

9

87506497

BEAM

walking, caster

2шт.

10

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

11

87418689

SPINDLE

wheel standard

1шт.

12

9602223

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

13

87419011

SHAFT

cross walk beam

1шт.

14

196033

VALVE STEM

tr/415

1шт.

14

1018564

VALVE

tire stem

1шт.

16

87503793

PIN

walking beam

2шт.

17

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Refer to 44.100.01

1шт.

18

3474

TYRE/TIRE

11l x 15 fi - d load range

2шт.

Base and Dual option

1шт.

18

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

2шт.

Hi Float option

1шт.

19

87505456

RIM

15" x 8" - 6 hole

2шт.

Base and Dual option

1шт.

19

87505450

RIM

15X10LB 6 hole +1 1/8" offset

2шт.

Hi Float option

1шт.

20

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

23

87503905

WASHER

single caster

1шт.

24

86992215

LOCK NUT,1/2"-13, GC

1шт.

25

87503937

SPACER

Wheel Standard

2шт.

26

280286

NUT,1"-8, GB

1шт.

27

5871

WASHER

1 1/64" id x 2" x 5/16"

1шт.

28

87553819

JAM NUT

1"-8 Hex, Jam

3шт.

29

87503868

SLIDE

wheel std castering

1шт.

30

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

31

84224912

PAD

Poly, 63 mm od x 26 mm id x 13 mm Thick

2шт.

32

87304132

NUT,1"-8, GC

1шт.

33

87503875

SLIDE

wheel standard single caster

1шт.

34

87503902

FORK

single caster

1шт.

35

88747

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

2шт.

36

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

37

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

38

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.

Refer to 44.100.02

1шт.

39

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

3шт.

40

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

41

80280640

BOLT

1/4"-20 x 1/2" G5

1шт.

42

80682

LOCK WASHER,1/4"

1шт.

43

87016930

SNAP RING,#300, Ext

1шт.

44

87503905

WASHER

single caster

1шт.

45

87701755

BOOM

wing 10' outer LH

1шт.

60' Model

1шт.

Not Shown

1шт.

45

87701759

BOOM

wing 10' outer RH

1шт.

60' Model

1шт.

Not Shown

1шт.

45

87701763

BOOM

wing 15' outer LH

1шт.

70' Model

1шт.

45

87701767

BOOM

wing 15' outer RH

1шт.

70' Model

1шт.

Not Shown

1шт.
