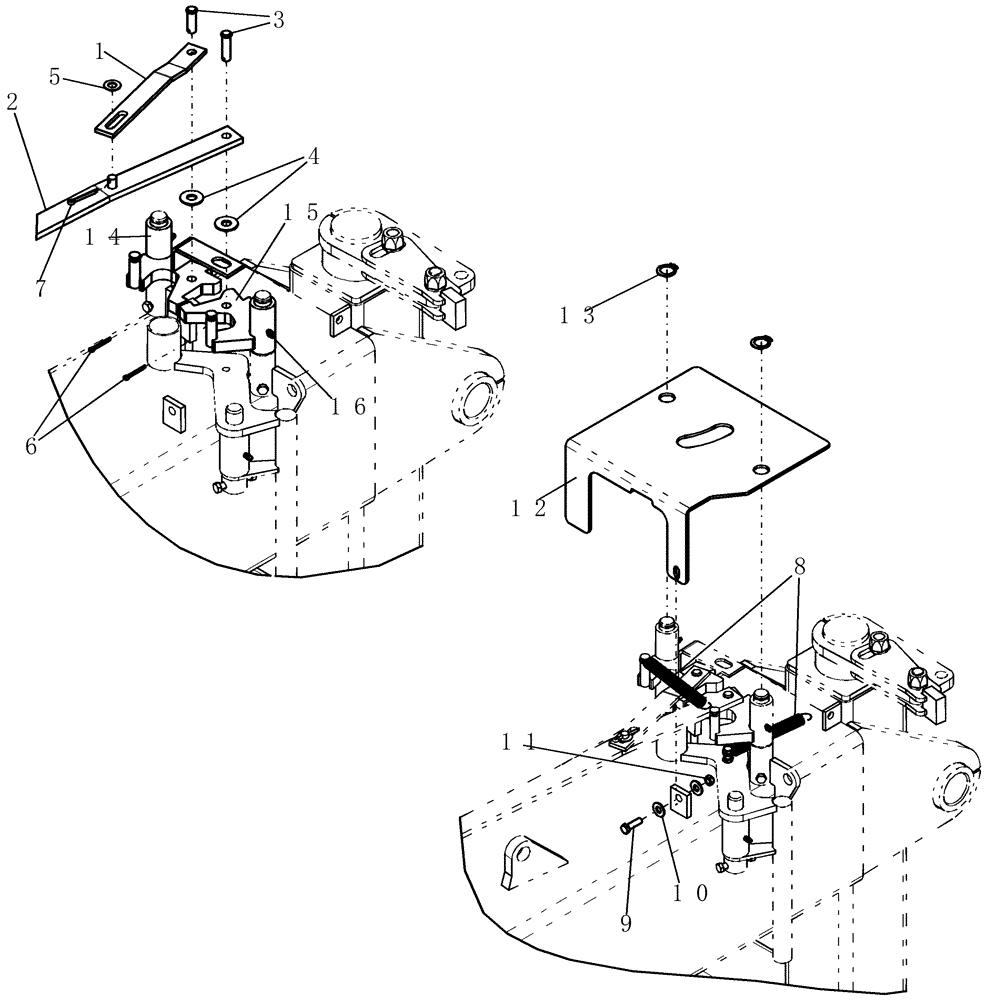

Запчасти Case IH 800 (39.100.10) - LOCKING CASTER (60 AND 70) PART 2 OF 2 (39) - FRAMES AND BALLASTING

1

87504262

LINK

secondary caster latch

2шт.

2

87504103

LINK

caster latch release

2шт.

3

427-8175

CLEVIS PIN,1/2" x 1 3/4'"

4шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

5

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

6

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

8

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

4шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

88902

NUT,3/8"-16

2шт.

12

87418970

SHIELD

caster latch LH

1шт.

12

87504264

SHIELD

caster latch RH

1шт.

13

87019495

SNAP RING,#98, Ext

4шт.

14

87505136

JAW

caster latch with sensor LH

1шт.

14

87505138

JAW

caster latch with sensor RH

1шт.

15

87504123

JAW

caster latch RH

1шт.

15

87504126

JAW

caster latch LH

1шт.

16

87414

LUBE NIPPLE,1/4" - 28

4шт.
